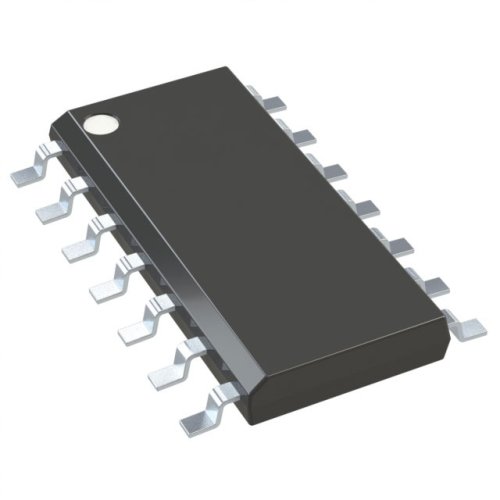

MCP2517FDT-H/SL External CAN FD 14SOIC Controller IC

MCP2517FDT-H/SL External CAN FD 14SOIC Controller IC

The MCP2517FDT-H/SL is a standalone CAN FD controller that supports the latest CAN FD protocol, allowing data rates up to 8 Mbps. It connects with a microcontroller via an SPI interface and is designed to be compatible with both 8-bit and 32-bit MCUs. The IC includes advanced error detection, reliable message handling, and flexible configurations to ensure optimal data transfer even in demanding environments. Its compact SMD package (SOIC) and robust design make it suitable for space-constrained and high-reliability applications. The MCP2517FDT-H/SL is a high-performance SMD CAN (Controller Area Network) FD (Flexible Data-rate) controller IC by Microchip Technology. This IC is ideal for automotive and industrial applications that require robust communication, as it enables faster data rates and greater data payloads over the CAN bus.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

• CAN FD Protocol Support: Fully compliant with CAN FD, enabling higher data rates (up to 8 Mbps) and increased data payloads (up to 64 bytes).

• SPI Interface: Standard SPI interface for easy integration with microcontrollers.

• Message Filtering: Features 32 message filters, 8 transmit buffers, and 32 receive buffers, allowing flexible message handling.

• Error Detection and Handling: Advanced error detection and interrupt capabilities to ensure reliable communication.

• Low Power Consumption: Power-saving modes help minimize energy consumption, ideal for battery-operated applications.

• Extended Temperature Range: Suitable for a wide range of industrial and automotive environments.

Specifications of MCP2517FDT-H/SL External CAN FD 14SOIC Controller IC

• Supply Voltage (VDD): 2.7V to 5.5V

• Data Rate: Up to 8 Mbps (CAN FD)

• Operating Temperature Range: -40°C to +125°C

• Message Filters: 32 filter elements for efficient message handling

• Transmit Buffers: 8 configurable transmit buffers

• Receive Buffers: 32 flexible receive buffers

• Package: SOIC-14 (SMD)

Package Includes

• 1 x MCP2517FDT-H/SL External CAN FD 14SOIC Controller IC
