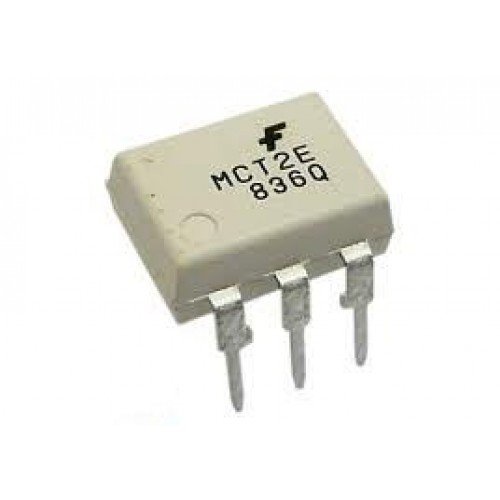

MCT2E optoisolator consist of a infrared emitting diode driving a silicon photo-transistor in a 6-pin dual in-line package.
Storage Temperature TSTG -55 to +150 °C
Operating Temperature TOPR -55 to +100 °C
Lead Solder Temperature TSOL 260 for 10 sec °C
Reverse Input Voltage VR 3 V
Collector Current C 50 mA
Collector-Emitter Voltage VCEO 30 V
Detector Power Dissipation @ TA = 25°C 150 mW
Power supply regulators
Digital logic inputs
Microprocessor inputs
