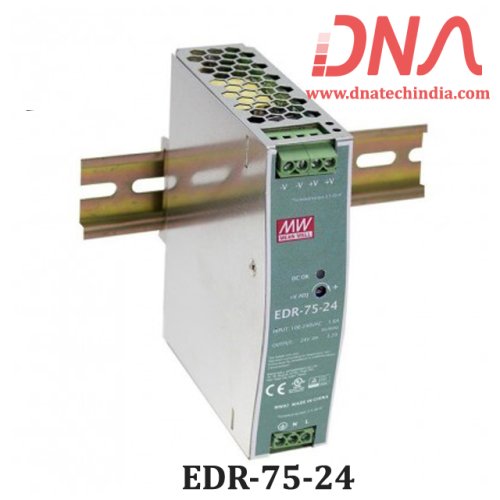

Meanwell EDR-75-24 SMPS Power Supply Unit

Meanwell EDR-75-24, 75W, 24V DC, 3.2A output, high efficiency up to 88%.

The Meanwell EDR-75-24 SMPS Power Supply Unit is a reliable 75 Watt DIN rail power supply, designed for industrial control applications. It delivers a stable 24 Volt DC output at 3.2 Ampere with high efficiency reaching up to 88%. This unit operates within a wide input range of 90 to 264 VAC, ensuring performance in diverse environments. Its fanless design and temperature range of –20°C to +60°C make it suitable for automation and machinery tasks.

Featuring overvoltage, short circuit, and overload protection, the Meanwell EDR-75-24 SMPS enhances safety and reliability in your projects. The DIN rail mounting option allows easy integration into existing systems, making it perfect for PLC panels, embedded systems, and LED drivers. Choose this power supply for dependable performance in various applications.

As a trusted supplier of Meanwell SMPS in India, we offer a range of products tailored to meet your industrial needs. Discover the versatility of the Meanwell EDR-75-24 SMPS for seamless integration into your automation projects. Explore our selection of high-quality power supplies.

At DNA, we provide a wide range of Meanwell SMPS. Explore our collection for reliable power solutions tailored for your industrial needs. Check other Meanwell SMPS that we have in stock.

If you can't find the electronic components you need, reach out to us at DNA. We can help source parts like LCD, MOSFET, Inductor, and more. We support retail and bulk orders and can import items if necessary. Contact Us.

Features of Meanwell EDR-75-24 SMPS

• Universal AC input 90–264 VAC
• Output 24 Volt DC, 3.2 Ampere
• High efficiency up to 88%
• DIN rail mountable
• Fanless cooling design
• Wide operating temperature range: –20°C to +60°C
• Overload, overvoltage, short circuit protection
• UL 508 approved
• LED indicator for power on
• 3-year warranty

Specification of Meanwell EDR-75-24 SMPS

• Output Voltage: 24 Volt DC
• Rated Current: 3.2 Ampere
• Rated Power: 76.8 Watt
• Voltage Adj. Range: 24 – 28 Volt
• Input Voltage Range: 90–264 VAC / 127–370 VDC
• Frequency Range: 47–63 Hz
• Efficiency: 87%–88%
• Inrush Current: 30A max at 230VAC
• Hold up Time: 60ms at 230VAC
• Operating Temp. Range: –20°C to +60°C
• Cooling Method: Natural air convection
• Dimensions: 32 × 125.2 × 113.5 mm
• Protections: Short circuit, overload, overvoltage
• Certifications: UL, CE, EAC
• Mounting Type: DIN Rail

Applications of Meanwell EDR-75-24 SMPS

• Industrial automation
• PLC and HMI panels
• Process control systems
• Machine building
• 24V LED systems

Related Links for Meanwell EDR-75-24 SMPS Power Supply Unit

• Other Products from Meanwell SMPS Category

Package Includes

• 1 X Meanwell EDR-75-24 SMPS
