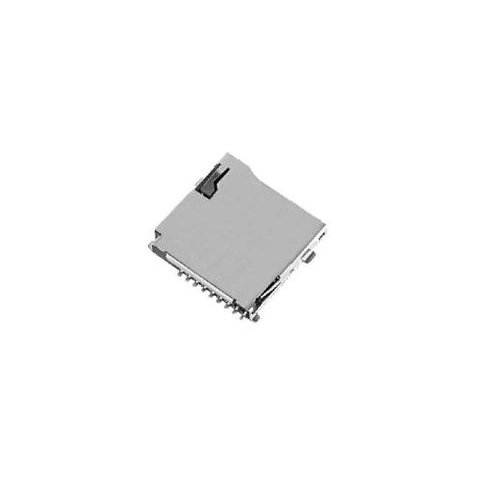

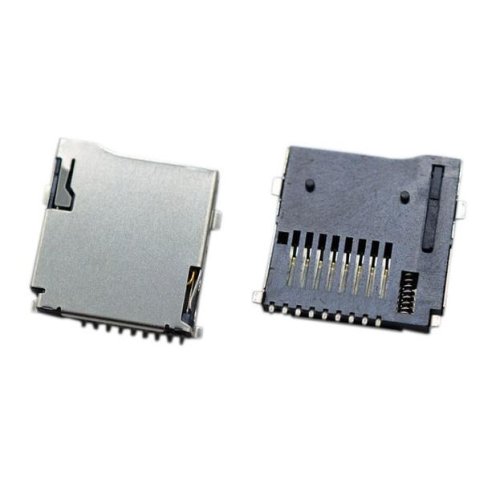

MICRO SD MEMORY CARD Push SOCKET (TF-07F)
Add Memory card interface into your next product using this easy to use MICRO SD CARD Push socket. This is a PCB Mount SD Card holder with Push to insert and push again to eject type. Once the memory card is pushed inside it get locked so you don't have to worry about the card falling out this making it ideal for your next embedded project.
The SD card Holder is Push-Push type, means you have Push to Insert and the SD card gets locked and then you have to Push again to Eject. Another advantage is this holder has Card Detect (CD) pin using which you will come to know if the SD card is inserted into the socket or not. When the card is not inserted the Card detect pin is connected to ground and when there is no card inserted this pin is floating so using an external pull-up resistor you can check if card is there or not.
Pin Number | Pin Name | Signal Function |
1. | NC | No Connect |
2. | /CS | Chip Select |
3. | DI | Master Out/Slave In (MOSI) |
4. | Vdd | Supply Voltage 2.7v / 3.6v |
5. | CLK | Clock |
6. | Vss | Ground |
7. | DO | Master In/Slave Out (MISO) |
8. | RSV | Reserved |
9. | CD | Card Detect Pin |
