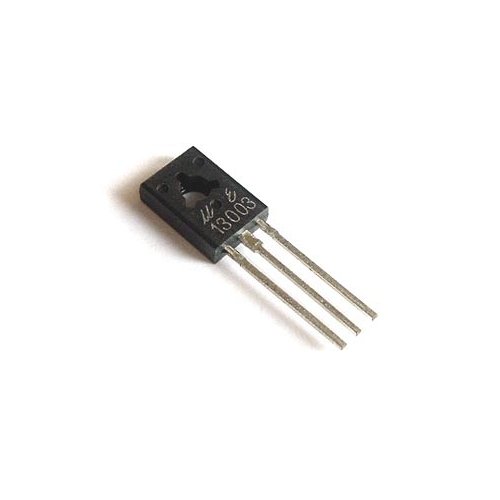

MJE13003D NPN POWER TRANSISTOR

MJE13003D is HIGH VOLTAGE FAST-SWITCHING NPN POWER TRANSISTOR.

The UTC MJE13003D is a NPN Power Transistor. It is intended to be used in applications requiring medium voltage capability and high switching speeds.

FEATURES of MJE13003D NPN POWER TRANSISTOR

• Fast-Switching And High Voltage Capability


• Dynamic Parameters With Low Spread

• High Reliability

• Integrated Anti parallel Collector-Emitter Diode

• Collector- Emitter Voltage (V_BE =0) V_CES=700 V

• Collector-Emitter Voltage (I _B =0) V_CEO=400 V

• Emitter-Base Voltage (I_C=0, I_B=0.75A, t_P <10μS) VEBO=9 V

• Collector Current I_C=1.5 A

• Collector Peak Current (t_P <5ms) I_CM=3 A

• Emitter-Base Breakdown Voltage BV_EBO IE =10mA, I_C=0 is 9V(min), 18 V(max)

• Base Current I_B=0.75 A

• Base Peak Current (tP <5ms) IBM=1.5 A

• Collector-Emitter Sustaining Voltage V_{CEO (SUS)} I_C=10mA, I_B=0=400
