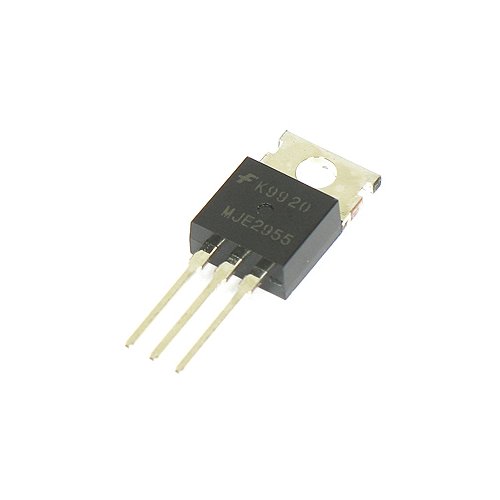

The MJE2955 is a silicon Epitaxial-Base PNP transistor in Jedec TO-220 package. It is intended for power switching circuits and general-purpose amplifiers. The complementary NPN type is MJE3055T.
VCEO Collector-Emitter Voltage (IB=0): 60 V
VCBO Collector-Base Voltage (IE=0): 70 V
VEBO Emitter-Base Voltage (IC=0): 5 V
IC Collector Current: 10 A
IB Base Current: 6 A
Ptot Total Power Dissipation at Tcase: ≤ 25 oC 75 W
Tstg Storage Temperature: -55 to 150 oC
Tj Max. Operating Junction Temperature: 150 oC
Rthj-case Thermal Resistance Junction-case: Max 1.66 oC/W
