MKA14103 Reed Sensor

MKA14103 Reed Switch-Reed Sensor

Reed switches also called as Reed Sensor is a electrical switch/sensor than can be operated by applying magnetic field. The magnetic field causes closure of the reed contacts. Upon removal of the magnetic field, contact open again due to the elasticity of the reeds.

A reed switch consists of two ferromagnetic nickel-iron wires and specially shaped contact blades (reeds) positioned in a hermetically sealed glass capsule with a gap between them and in a protective atmosphere. The glass capsule is filled with inert gas to prevent activation of the contacts. The ruthenium or rhodium plated contact surfaces are isolated from the outside environment, which protects the contacts from contamination.

Specifications/Special Features of MKA14103 Reed Sensor

• Maximum Switching Power : 10 Watt

• Maximum switching current : 0.5 Ampere

• Maximum switching voltage : 100 Volt DC

• Minimum breakdown voltage : 220/250V DC

• Maximum curry current : 1.0 Ampere

• Maximum contact resistance : 100 mΩ

• Operating time : 1.0ms

• Bounce time : 0.6ms

• Release time : 0.4ms

• Resonant frequency : 4000Hz

• Maximum operating frequency : 500Hz

• Pull in value : 8-20AT/20-35AT

• Minimum drop out value : 4AT

• Maximum contact capacitance : 0.7pF

• Functions :

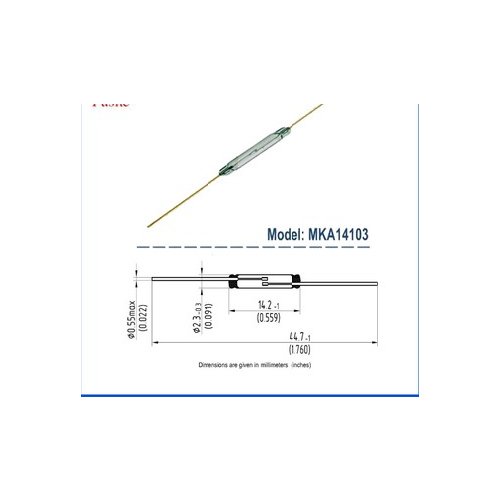

-Glass length : 14.2 x Φ2.3 maximum

-Overall length : 44.7 x Φ0.55 maximum

-RoHS Directive-compliant

Features of MKA14103 Reed Switch

• Compact size,

• Low weight,

• Quick response time,

• Long life,

• Low cost.

Applications of Reed Switch

• Reed relays

• Automotive sensors

• Security systems

• Robotics

• Toys and games
