MOC3023 Optocoupler/Optoisolator

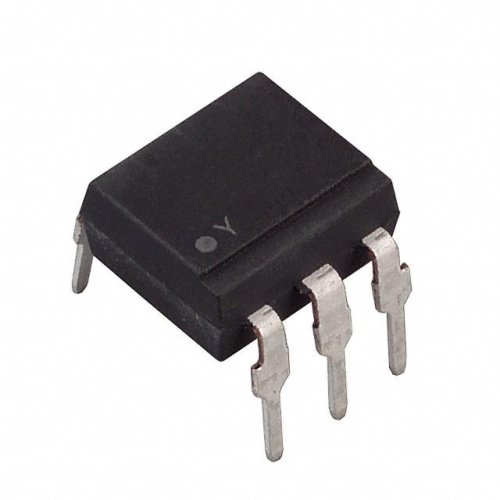

This is a DIP MOC3023 Opto-coupler used mostly for driving Triacs and providing isolation between the Triac and your driving circuit.

Features of MOC3023

• 400 V Phototriac Driver Output

• Diode Infrared Source and Optically-Coupled Silicon Traic Driver (Bilateral Switch)

• UL Recognized ... File Number E65085

• High Isolation ... 7500 V Peak

• Output Driver Designed for 220 Vac

• Standard 6 -Terminal Plastic DIP

• Directly Interchangeable with Motorola MOC3020, MOC3021, MOC3022, and MOC3023

Applications of MOC3023

• Solenoid/Valve Controls

• Lamp Ballasts

• Interfacing Microprocessors to 115/240 Vac Peripherals

• Motor Controls

• Incandescent Lamp Dimmers
