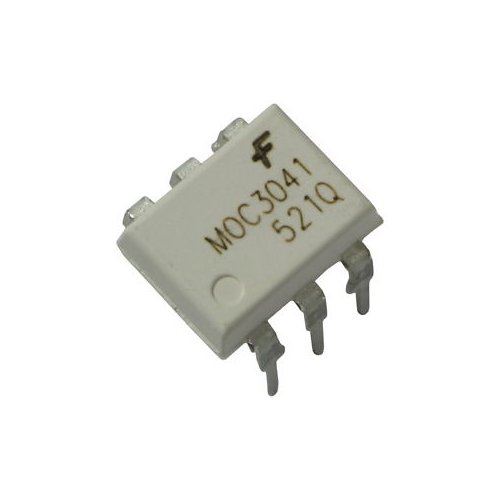

MOC3041 Optoisolator Triac Driver

MOC3041 Optoisolator Triac Driver

The MOC3041, MOC3042 and MOC3043 devices consist of infrared emitting diodes optically coupled to a monolithic silicon detector performing the function of a Zero Voltage Crossing bilateral triac driver. They are designed for use with a triac in the interface of logic systems to equipment powered from 115 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc.

Features of MOC3041

• Simplifies Logic Control of 115 Vac Power

• Zero Voltage Crossing

• dv/dt of 2000 V/µs Typical, 1000 V/µs Guaranteed

• Reverse Voltage VR 6 Volts

• Forward Current — Continuous IF 60 mA

• Storage Temperature Range Tstg –40 to +150 °C

• Soldering Temperature TL 260 °C

• Junction Temperature Range TJ –40 to +100 °C

• Ambient Operating Temperature Range TA –40 to +85 °C

Applications of MOC3041

• Solenoid/Valve Controls

• Temperature Controls

• Lighting Controls

• E.M. Contactors

• Static Power Switches

• AC Motor Starters

• AC Motor Drives

• Solid State Relays
