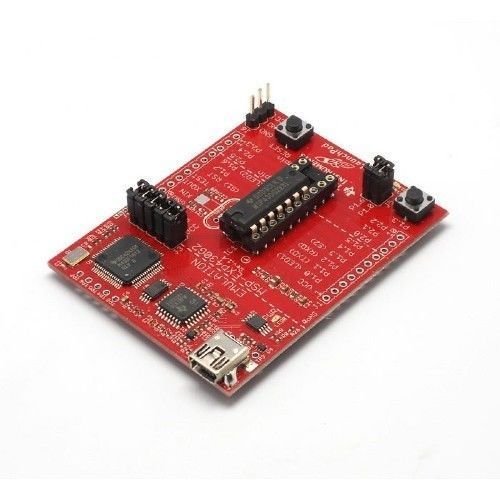

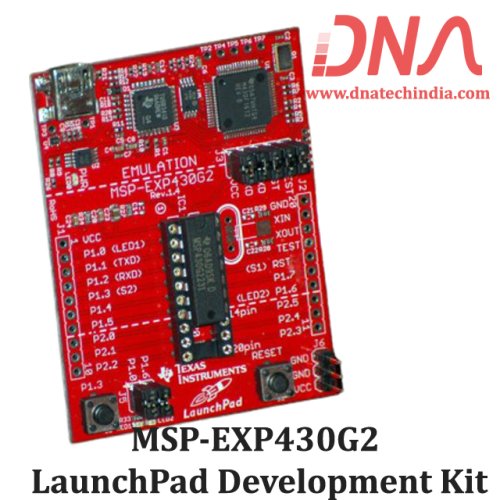

MSP-EXP430G2 LaunchPad Development Kit

The MSP-EXP430G2 LaunchPad Development Kit is an easy-to-use microcontroller development board for the low-power and low-cost MSP430G2x MCUs.

It has on-board emulation for programming and debugging and features a 14/20-pin DIP socket, on-board buttons and LEDs & BoosterPack Plug-in Module pinouts that support a wide range of modules for added functionality such as wireless, displays & more.
The MSP-EXP430G2 LaunchPad also comes with 2 MSP430 devices, with up to 16kB Flash, 512B RAM, 16MHz CPU
speed and integrated peripherals such as 8ch 10-bit ADC, timers, serial communication (UART, I2C & SPI) & more!You can browse all documentation online with TI Resource Explorer and start development with the online CCS Cloud IDE. Other professional development environments are also available, such as TI's Eclipse-based Code Composer Studio and IAR Embedded Workbench.

We have Various sizes of Development Board. Check out our complete collection of Development Board..

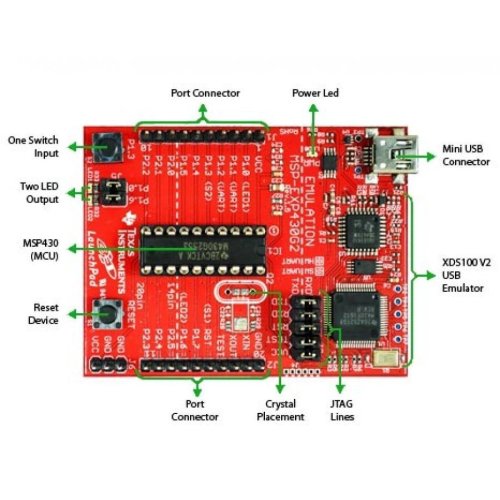

Features of MSP-EXP430G2

• USB debugging and programming interface featuring a driverless installation and application UART serial communication with up to 9600 Baud

• Supports MSP430G2xx2, MSP430G2xx3, and MSP430F20xx devices in PDIP14 or PDIP20 packages

• Two general-purpose digital I/O pins connected to green and red LEDs for visual feedback

• Two push button for user feedback and device reset

• Easily accessible device pins for debugging purposes or as socket for adding customized extension boards

• High-quality 20-pin DIP socket for an easy plug-in or removal of the target device
