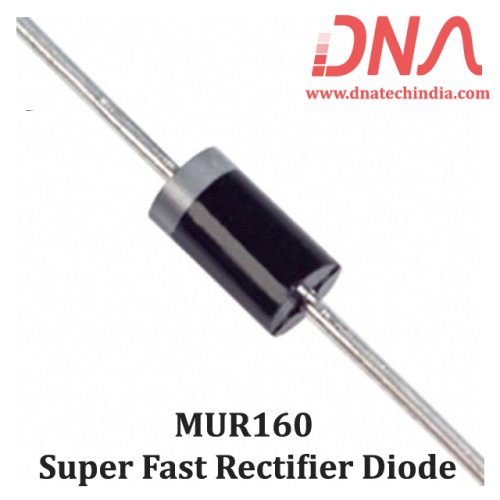

MUR160 is Super fast rectifier diode with high efficiency and high current capability
We have Various sizes of Diode. Check out our complete collection of Diode.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Glass Passivated Die Construction
Super-Fast Recovery Time For High Efficiency
Low Forward Voltage Drop and High Current Capability
Surge Overload Rating to 35A Peak
Ideally Suited for Automated Assembly
Lead Free Finish, RoHS Compliant
Peak Repetitive Reverse Voltage VRRM 600 V
Working Peak Reverse Voltage VRWM 600 V
DC Blocking Voltage VR 600 V
RMS Reverse Voltage VR (RMS) 424 V
Average Rectified Output Current @ TT = 120C IO 1.0 A
Typical Junction Capacitance (Note 1) Cj 45 pF
Typical Thermal Resistance, Junction to Ambient RJA 72 K/W
Operating and Storage Temperature Range Tj, TSTG -65 to +175 C
Case : DO-41
Case Material : Molded Plastic. UL Flammability Classification Rating 94V-0
Moisture Sensitivity : Level 1 per J-STD-020C
Terminals : Finish Bright Tin. Solderable per MIL-STD-202, Method 208
Marking : MUR160: R160
Polarity : Cathode Band
Mounting Position : Any
Weight : 0.35 grams
