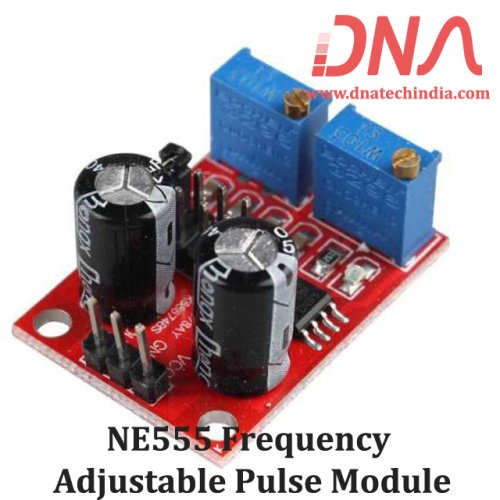

NE555 Frequency Adjustable Pulse Module

Name: NE555 Frequency Adjustable Pulse Module
Brand: Generic
SKU: DAA968
Price: 67.80 INR
Availability: InStock
Rating: 3 (2 reviews)

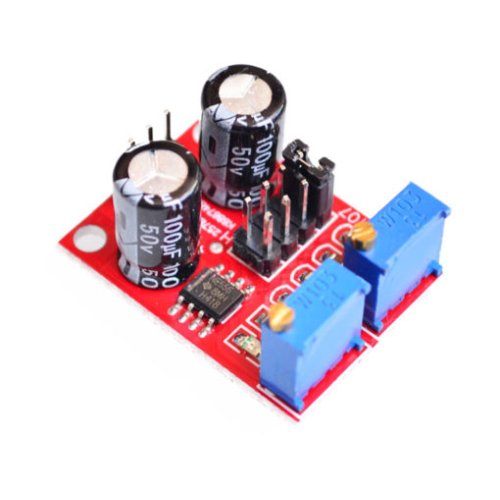

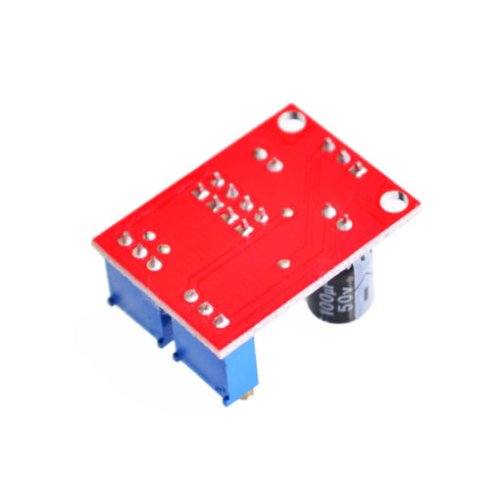

NE555 Frequency Adjustable Pulse Generator Module

This is a very simple and compant module for generating square wave. It is based on NE555 IC and can be used to generate square wave pulses from about 4 Hz to 1.3 Khz, this can be used for experimental development, or driving a stepper motor, it would be also a good choice for users learning working of LM555 IC.

We have Various sizes of Misc Modules. Check out our complete collection of Misc Modules

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features

Size : 31mm * 22mm;

Main chip : NE555;

Input Voltage : 5V-15VDC. when power supply is 5V , the output current can be 15MA around;when 12V power supply, the output current can 35MA around;

Input current : >=100MA

Output amplitude : 4.2V V-PP to 11.4V V-PP. (Different input voltage, the output amplitude will be different)

Maximum output current : >=15MA (5V power supply, V-PP greater than 50%),

>=35MA (12V power supply, V-PP greater than 50%)

Output with LED indication(low level ,LED will on; high level,LED will off;low frequency, the LED flashes);

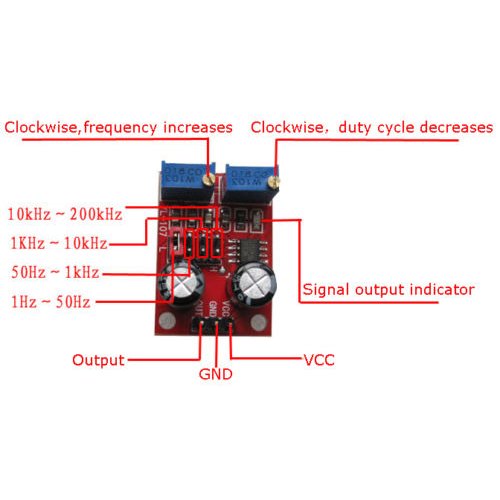

The output frequency range is selectable :

LF file : 1Hz ~ 50Hz
IF file : 50Hz ~ 1kHz
High - frequency file: 1KHz ~ 10kHz
HF file : 10kHz ~ 200kHz

The output duty cycle can fine-tune;duty cycle and frequency is not separately adjustable ; adjusting the duty cycle will change the frequency

Application

As a square wave signal generator,generates a square wave signal used for experimental development.

Used to drive a stepper motor for generating a square wave drive signal.

Generate adjustable pulse for MCU.

Generate adjustable pulse,to control circuitry associated.

Package includes:

1 x NE555 Pulse Frequency Duty Cycle Adjustable Module Square Wave Signal Generator
