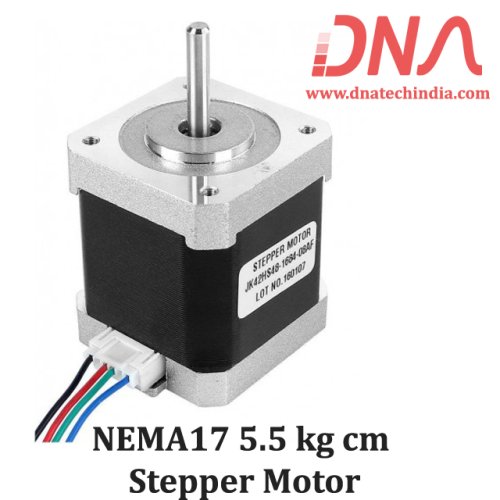

NEMA17 5.5 kg cm Stepper Motor

This NEMA 17 5.5 kg cm Stepper Motor can provide 5.5 kg-cm of torque at 1.5 AMPERE current per phase.

The stepper motors moves in precisely repeatable steps, hence they are the motors of choice for the machines requiring precise position control.

The motor’s position can be commanded to move or hold at one position with the help of Stepper Motor Drivers. The NEMA-17 5.5 kg-cm Stepper Motor provides excellent response to starting, stopping and reversing pulses from stepper motor driver.

They are very useful in the various application especially which demands low speed with high precision. Many machines such as 3D Printers, CNC Router and Mills, Camera Platforms, XYZ Plotters etc.

It is a brushless DC motor, so the life of this motor is dependent upon life of the bearings. The position control is achieved by a simple Open Loop control mechanism so doesn’t require complex electronic control circuitry.

The motor’s shaft has been machined for good grip with a pulley, drive gear etc. and especially avoiding stall or slip. The NEMA17 Stepper Motor 72CM Detachable Cable is not included in this pack, buy it separately.

We have Various sizes of Stepper Motors.Check out our complete collection of Stepper Motors

Features of NEMA17 5.5 kg cm Stepper Motor

• Input pulse decides the rotation angle of the motor.

• High accuracy of around 3 to 5% a step.

• Provides good starting, stopping and reversing.

• Control of this motor is less costly because of exclusion of complex control circuitry.

• The speed is proportional to the frequency of the input pulses.

Specifications Of NEMA17 5.5 kg cm Stepper Motor

• Step Angle : 1.8°

• Motor Part Number : jk42hs48-1684-08AF

• Holding Torque : 5.5 KgCm

• Operating Voltage : 12 - 16 volts

• Supply Current (A) :1.5 Ampere

• No. of Leads : 6

• Inductance : 5.5 mH

• Resistance : 2.8 Ohms

• Weight (gm) : 363

• Detent Torque (kg-cm) : 2.6

• Frame Size (mm) : 42 x 42

• Inductance Accuracy : ±20%

• Resistance Accuracy : ±10%

• Step Angle Accuracy : ±5%

• Shaft Diameter (mm) : 5

• Shaft Length (mm) : 22

Checkout our collection of various types of NEMA17, NEMA23 & NEMA34 Stepper motors.
