It can be welded with ease to the required components, as another option of joining.

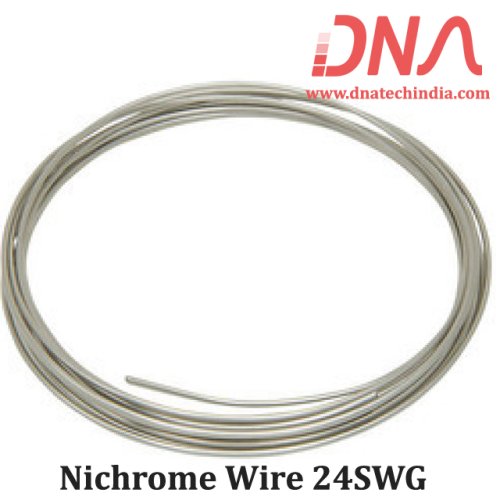

Nichrome wire, is a composite of 80% nickel and 20% chrome, creating a tough hard to bend wire, with a high temperature tolerance, it is used for a range of applications, including foam cutting, interior ribbing for clay models, heating elements in RepRap 3D Printers and much more.
The wire requires a phosphoric acid flux in order to be soldered, due to solders tendency to melt when heated.
We have Various sizes of Hardware.Check out our complete collection of Hardware
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
10 gm roll
Nichrome style
High heat resistance
Commonly higher resistance than copper wire
24 SWG (gauge)
0.56 mm diameter
4.39 ohms per meter
1.00M approximate length
Meltiing point ℃ : 1400
Density(g/cm3) : 8.4
Micrographic structure : Austenite
Magnetic properties : Nonmagnetic
Thermal conductivity (KJ/m·h·ºC) : 60.3
Max. continuous service temp. of element(ºC) : 1200
