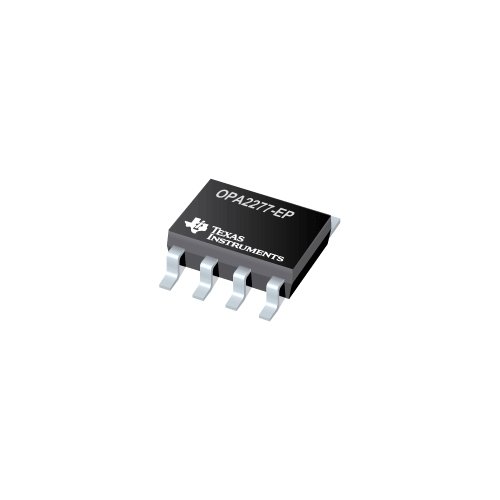

The OPA2277 is precision operational amplifier it replaces the industry standard OP-177.
It offers improved noise, wider output voltage swing, and is twice as fast with half the quiescent current. Features include ultra-low offset voltage and drift, low bias current, high common-mode rejection, and high power supply rejection.
OPA2277 operates from ±2-V to ±18-V supplies with excellent performance. Unlike most operational amplifiers, which are specified at only one supply voltage, the OPA2277 op-amp is specified for real-world applications; a single limit applies over the ±5-V to ±15-V supply range. High performance is maintained as the amplifiers swing to their specified limit. Because the initial offset voltage (±20 µV max) is so low, user adjustment is usually not required.
OPA2277 is easy to use and free from phase inversion and overload problems found in some operational amplifiers. It is stable in unity gain and provides excellent dynamic behavior over a wide range of load conditions. OPA2277 opamp features completely independent circuitry for lowest crosstalk and freedom from interaction, even when overdriven or overloaded. Dual versions are available in DIP-8, SO-8. OPA2277 is fully specified and operates from –55°C to 125°C.
Ultra-Low Offset Voltage : 10 µV
High Open-Loop Gain : 134 dB
High Common-Mode Rejection : 140 dB
High Power Supply Rejection : 130 dB
Low Bias Current : 1-nA Maximum
Wide Supply Range : ±2 to ±18 V
Low Quiescent Current : 800 µA/Amplifier
Transducer Amplifier
Bridge Amplifier
Temperature Measurements
Strain Gage Amplifier
Precision Integrator
Battery-Powered Instruments
Test Equipment
