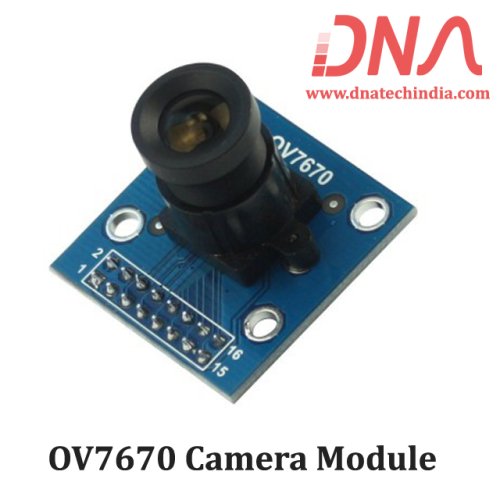

OV7670 Serial Camera Module

The OV7670 image sensor is a small size, low voltage, single-chip VGA camera and CMOS image processor for all functions.

It provides full-frame, sub-sampled or windowed 8-bit images in various formats, controlled through the Serial Camera Control Bus (SCCB) interface.
The camera module is powered from a single +3.3V power supply, and external clock source for camera module XCLK pin. The OV7670 camera module has built-in on-board LDO regulator only requires single 3.3V power and can be used in Arduino, STM32, Chipkit, ARM, DSP, FPGA and etc.

We have Various sizes of Misc Modules. Check out our complete collection of Misc Modules

Specification of OV7670 camera module

• Optical size 1/6 inch

• Resolution 640×480 VGA

• Onboard regulator, only single 3.3V supply needed

• Mounted with high quality F1.8 / 6mm lens

• High sensitivity for low-light operation

• VarioPixel® method for sub-sampling

• Automatic image control functions including: Automatic

• Exposure Control (AEC), Automatic Gain Control (AGC), Automatic White Balance (AWB), Automatic

• Band Filter (ABF), and Automatic Black-Level Calibration (ABLC)

• Image quality controls including color saturation, hue, gamma, sharpness (edge enhancement), and anti-blooming

• ISP includes noise reduction and defect correction

• Supports LED and flash strobe mode

• Supports scaling

• Lens shading correction

• Flicker (50/60 Hz) auto detection

• Saturation level auto adjust (UV adjust)

• Edge enhancement level auto adjust

• De-noise level auto adjust

Application of OV7670 camera module:

• High sensitivity suitable for illumination applications

• Low voltage suitable for embedded applications

• Standard SCCB interface compatible with I2C interface

• 50/60Hz automatic detection
