PBS110 Red ON OFF Push Button Switch

Red Mini ON-OFF Type Push Button in Metal Body

Want a high quality cabinet mounting switch to be used in rugged environment? Well PBS110 is a very good option for you. This is a ON-OFF type push button in metal body.

Specifications of PBS-110 Red ON-OFF Type Push button Switch

• Normally Open Type (ON-OFF)

• Pressure : 1500V, AC/minute.

• Life : ≥10000 times.

• Current rating 3 Ampere at 12 VDC, 0.5 A at 120-250 Vac.

• Button switch : PBS-110.

• Temperature range : -25 to 85°.

• Contact resistance : ≤ 50mΩ.

• Applied voltage : 220 Volt AC.

• For Mods, Car and Boat Vehicle Horn Switch, CPU Power Switch, Circuit Controls, Robotic Sensors, Electronic DIY Equipment.

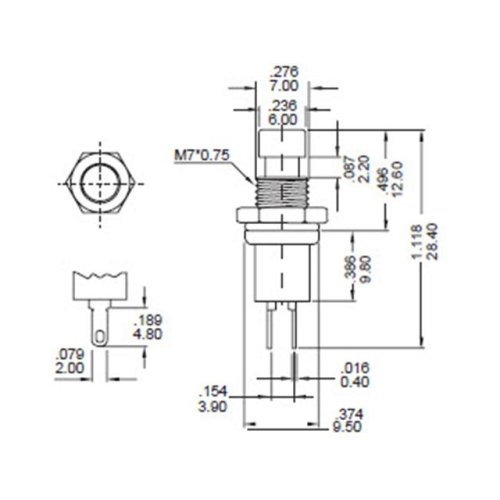

• 27mm (1.06") Long and 26mm (1.02") when depressed. It has a 1/4" (6.35mm) thread which fits in a 7mm (0.27") mounting hole. Widest Diameter is 9.5mm (0.37").

Include Package

• 1 Piece of Red PBS110 ON-OFF Switch
