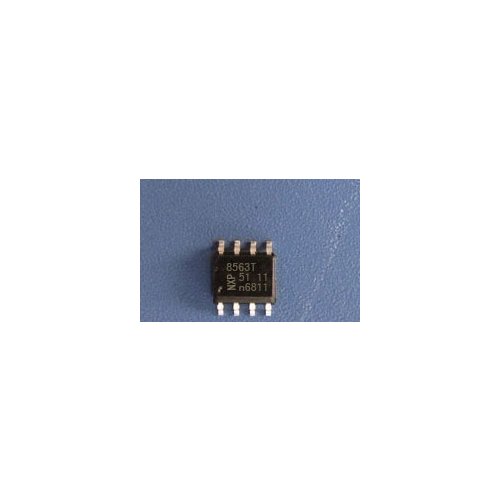

The PCF8563 is a CMOS Real-Time Clock (RTC) and calendar optimized for low power consumption.
A programmable clock output, interrupt output, and
voltage-low detector are also provided. All addresses and data are
transferred serially via a two line bidirectional I2C-bus. Maximum bus speed is 400 kbit/s. The register address is incremented automatically after each written or read data byte.
Provides year, month, day, weekday, hours, minutes, and seconds based on a 32.768 kHz quartz crystal
Century flag
Clock operating voltage: 1.0 V to 5.5 V at room temperature
Low backup current; typical 0.25 uA at VDD = 3.0 V and Tamb = 25 0C
400 kHz two-wire I2C-bus interface (at VDD = 1.8 V to 5.5 V)
Programmable clock output for peripheral devices (32.768 kHz, 1.024 kHz, 32 Hz, and 1 Hz)
Alarm and timer functions
Integrated oscillator capacitor
Internal Power-On Reset (POR)
I2C-bus slave address: read A3h and write A2h
Open-drain interrupt pin
Mobile telephones
Portable instruments
Electronic metering
Battery powered products
