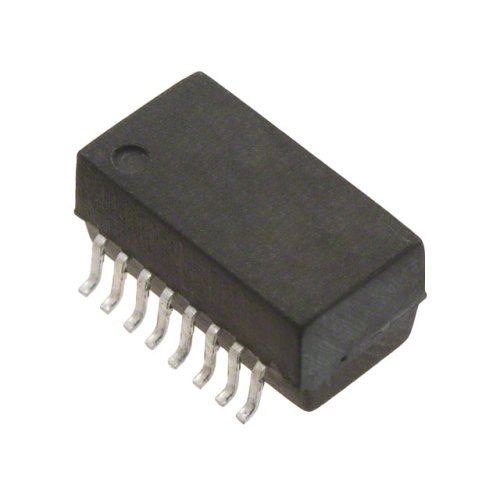

PE65798 Pulse Transformer

Pulse transformer is basically used to provide isolation in application where small burst of rectangular pulses are needed.

What is Pulse Transformer?

Pulse transformer for some applications also gate transformer or gate drive transformer or trigger transformer or wideband transformer or signal transformer is a type of transformer optimised and designed for transmission of voltage pulses between its windings and into the load. Pulse transformer is basically used to provide isolation in application where small burst of rectangular pulses are needed.

Features of PE65798

• RoHS : No

• Operating Temperature Range : 0 C to + 70 C

• Product : Signal

• Application : ISDN S-Interface

• Brand : Pulse

• Primary Resistance : 2.5 Ohms

• Qualification : Commercial

• Secondary Resistance : 5.8 Ohms

• Shielding : Unshielded

Application of Pulse Transformer

Pulse transformers can be used for signal transmission, low-power control circuits, camera flashes, radar systems, high-power switched-mode power supplies and other fields where pulsed form of relatively high voltage along with isolation is required.
