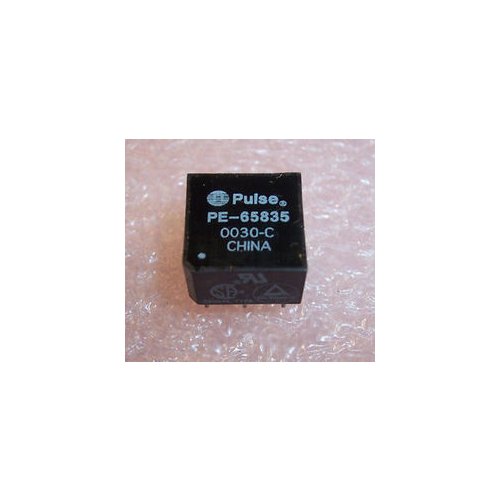

Pulse transformer is basically used to provide isolation in application where small burst of rectangular pulses are needed.
Pulse transformer for some applications also gate transformer or gate drive transformer or trigger transformer or wideband transformer or signal transformer is a type of transformer optimised and designed for transmission of voltage pulses between its windings and into the load. Pulse transformer is basically used to provide isolation in application where small burst of rectangular pulses are needed.
RoHS : No
Termination Style : Through Hole
Primary Impedance : 0.7 Ohms
Secondary Impedance : 1.1 Ohms
Isolation Voltage : 1.5 kV
Operating Temperature Range : 0 C to + 70 C
Number of Channels : Single
Product : LAN
Type : Module
Application : T1/CEPT/ISDN-Pri
Length : 14.22 mm
Width : 14.22 mm
Height : 10.2 mm
Brand : Pulse
Primary Resistance : 0.7 Ohms
Qualification : Commercial
Secondary Resistance : 1.1 Ohms
Shielding : Unshielded
Pulse transformers can be used for signal transmission, low-power control circuits, camera flashes, radar systems, high-power switched-mode power supplies and other fields where pulsed form of relatively high voltage along with isolation is required.
See 1 Ratings & Reviews |
