Whether you’re building a small robot or using any kind of motors in your projects, it might be useful to know the speed at which your are driving them.

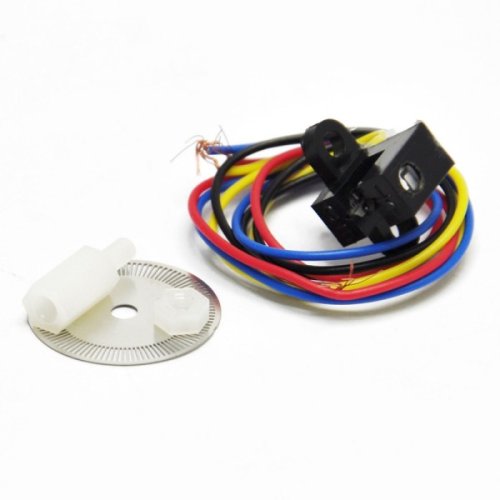

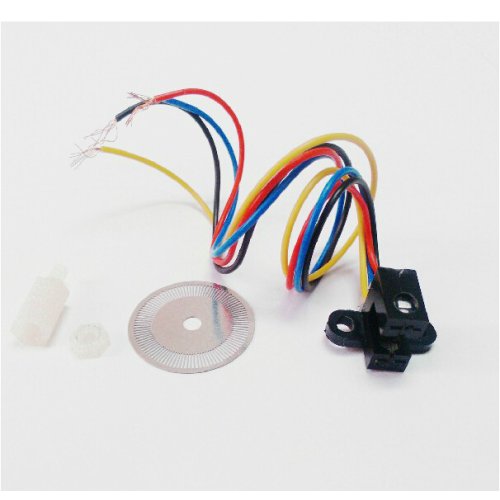

This speed sensor kit uses a disc with holes (encoder disc) to block the infrared beam, thus by counting the number of times the sensors goes from Low to High we can calculate the number of revolution for a given time period.
Number of lines : 100 lines
Outer diameter : 22mm
Bore Diameter : 3.5mm
Thickness : 0.3mm
Material : Steel
Production process : Laser Cutting
Speed of pipe technical parameters :
On the tube Manufacturer : Hewlett-Packard HP Original
Supply voltage : 5V
Wiring : Red-5V Black-GND
Output Signal : 5Vp-p two quadrature signal output
See 1 Ratings & Reviews |
Whether you’re building a small robot or using any kind of motors in your projects, it might be useful to know the speed at which your are driving them.
This speed sensor kit uses a disc with holes (encoder disc) to block the infrared beam, thus by counting the number of times the sensors goes from Low to High we can calculate the number of revolution for a given time period.
Number of lines : 100 lines
Outer diameter : 22mm
Bore Diameter : 3.5mm
Thickness : 0.3mm
Material : Steel
Production process : Laser Cutting
Speed of pipe technical parameters :
On the tube Manufacturer : Hewlett-Packard HP Original
Supply voltage : 5V
Wiring : Red-5V Black-GND
Output Signal : 5Vp-p two quadrature signal output
