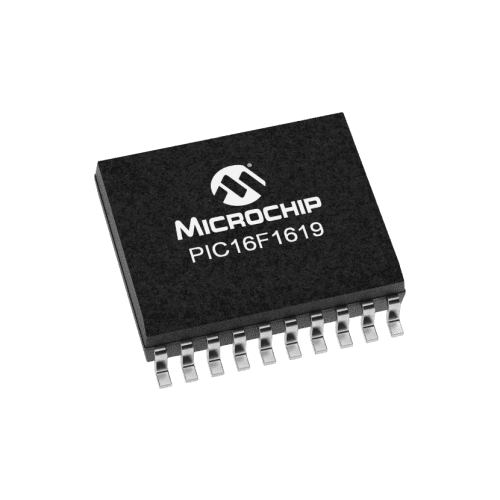

PIC16F1619 SMD Microcontroller

Microchip's PIC16F1619 microcontrollers

Microchip's PIC16F1619 microcontrollers deliver on-chip features that are unique to the design for embedded control of small motors and general purpose applications in 20 pin count packages. Features like 10-bit A/D, CCP, 24-bit SMT, Zero Cross Detection offer an excellent solution to variety of applications. The product family also has a CRC + memory scan and Window WDT to support safety critical systems in home appliances, white goods and other end equipment.

Features of PIC16F1619

• Flash Program Memory with self read/write capability

• Enhanced Mid-Range Core, Internal 32MHz oscillator

• High Endurance Flash Memory (HEF)

• 128 B of Non-volatile Data Storage

• 2 x Analog Comparators

• 2 x 10 - bit PWM

• 2 x Capture-Compare-PWM (CCP)

• 8 x 10-bit Analog-to-Digital Converter (ADC) with voltage reference

• Complementary Waveform Generator (CWG) :

• Zero Cross Detection (ZCD)

• CRC : 16-bit with DMA

• Math Accelerator

• Timers :

• High Current Source/Sink : 2 x 100mA I/O

• Power-On Reset (POR), Brown-Out Reset (BOR)

• In Circuit Serial Programming (ICSP)

• Wide Operating Voltage of PIC16F1619 variant (2.3V – 5.5V)

• Enhanced Low-Voltage PIC16LF1619 variant (1.8V - 3.6V)
