This device is easily adapted for automotive, industrial, appliances and consumer entry-level product applications that require field re-programmability.

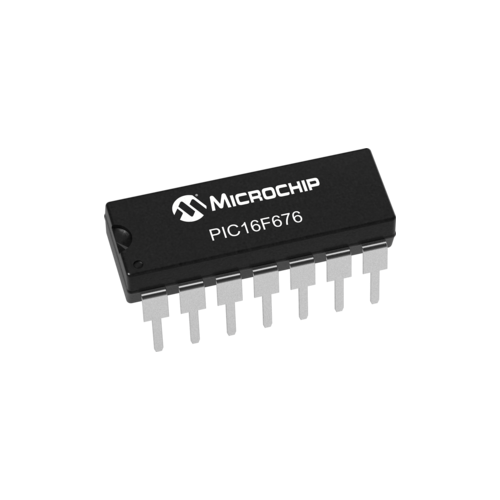

PIC16F676 is powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS Flash-based 8-bit microcontroller packs Microchip’s powerful PIC® MCU architecture into a 14-pin package and features 8 channels for the 10-bit Analog-to-Digital (A/D) converter, 1 comparator and 128 bytes of EEPROM data memory.
128 bytes of EEPROM Data Memory
Programmable pull-up resistors
Individually select able analog channels
ICD2 programming support or debugging support with optional header adapter
8 oscillator sellections including precision 4 MHz RC oscillator with programmable calibration and Power-on Reset
Program Memory Type : Flash
Program Memory (KB) : 1.75
CPU Speed (MIPS) : 5
RAM Bytes : 64
Data EEPROM (bytes) : 128
Digital Communication Peripherals : 1-UART,
Timers : 1 x 8-bit, 1 x 16-bit
ADC : 8 ch, 10-bit
Comparators : 1
Temperature Range (C) : -40 to 125
Operating Voltage Range (V) : 2 to 5.5
Pin Count : 14
Cap Touch Channels : 8
