All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.

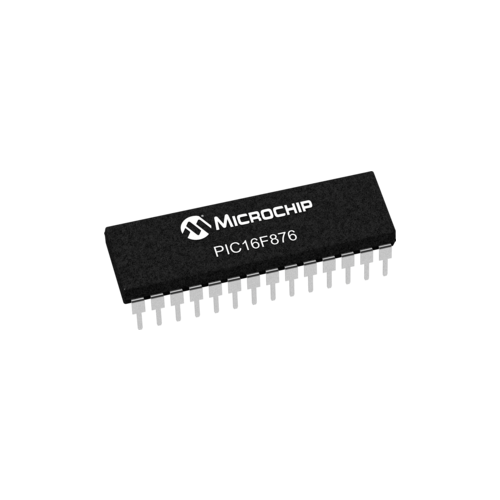

PIC16f876 Micro-controller from Microchip is a powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit micro-controller packs Microchip's powerful PIC® architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices.
PIC16F876 features 256 bytes of EEPROM data memory, self programming, an ICD, 5 channels of 10-bit Analog-to-Digital (A/D) converter, 2 additional timers, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART).
Program Memory Type : Flash
Program Memory (KB) : 14
CPU Speed (MIPS) : 5
RAM Bytes : 368
Data EEPROM (bytes) : 256
Timers : 2 x 8-bit, 1 x 16-bit
ADC : 5 ch, 10-bit
Temperature Range (C) : -40 to 85
Operating Voltage Range (V) : 2 to 5.5
Pin Count : 28
See 1 Ratings & Reviews |
All of these features make it ideal for more advanced level A/D applications in automotive, industrial, appliances and consumer applications.
PIC16f876 Micro-controller from Microchip is a powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS FLASH-based 8-bit micro-controller packs Microchip's powerful PIC® architecture into an 28-pin package and is upwards compatible with the PIC16C5X, PIC12CXXX and PIC16C7X devices.
PIC16F876 features 256 bytes of EEPROM data memory, self programming, an ICD, 5 channels of 10-bit Analog-to-Digital (A/D) converter, 2 additional timers, 2 capture/compare/PWM functions, the synchronous serial port can be configured as either 3-wire Serial Peripheral Interface (SPI™) or the 2-wire Inter-Integrated Circuit (I²C™) bus and a Universal Asynchronous Receiver Transmitter (USART).
Program Memory Type : Flash
Program Memory (KB) : 14
CPU Speed (MIPS) : 5
RAM Bytes : 368
Data EEPROM (bytes) : 256
Timers : 2 x 8-bit, 1 x 16-bit
ADC : 5 ch, 10-bit
Temperature Range (C) : -40 to 85
Operating Voltage Range (V) : 2 to 5.5
Pin Count : 28
