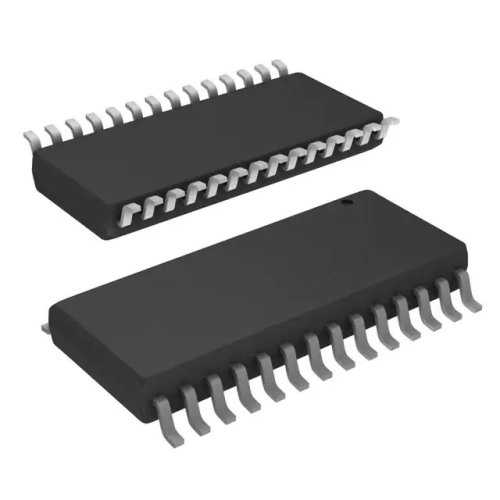

PIC18F2520 -I/SO 8-bit Microcontrollers SMD IC
PIC18F2520 -I/SO 8-bit Microcontrollers SMD IC
This is a 28 pin high performance 10- bit PIC series Micro-controller from Microchip.
DNA solutions, Nashik has various types of IC'S. Check out our complete collection of IC's.
- Up to 10 MIPS performance
- 8 x 8 Single Cycle Hardware Multiply
- Wide operating Voltage range; 2.0V to 5.5V
- C compiler optimized RISC architecture
- Run, Idle and Sleep modes
- Idle mode currents down to 5.8uA typical
- Fail-Safe Clock Monitor – allows safe shutdown if clock fails
- Watchdog Timer with separate RC oscillator
- Programmable Low Voltage Detection Module
- Programmable Brown-out Reset module
- Two Analog comparators with input multiplexing
- Master Synchronous Serial Port supports SPI ™ and I2C™ Master and Slave Mode
- EUSART module including LIN bus support
- Up to 2 Capture / Compare
- Sleep mode currents down to 0.1uA typical
- Internal oscillator support 31 kHz to 8 MHz
- 10-bit ADC, 10 channels, 100K samples per second
Specification of PIC18F2520 -I/SO 8-bit Microcontrollers SMD IC
- Manufacturer-MICROCHIP TECHNOLOGY
- Type of integrated circuit-PIC microcontroller
- Case-SO28SRAM memory capacity-1.5kB
- EEPROM memory capacity-256B
- Kind of architecture-Harvard 8bit
- Number of capacitive channels-10
- Number of output compare channels 2
- Number of input capture channels 2
- Operating temperature-40...85°C
- Flash memory capacity 31.25kB
- Operating frequency 0...40MHz
- Built-in generator 32kHz, 8MHz
- Number of inputs/outputs-25
Package Includes
1 x PIC18F2520 -I/SO 8-bit Microcontrollers SMD IC
