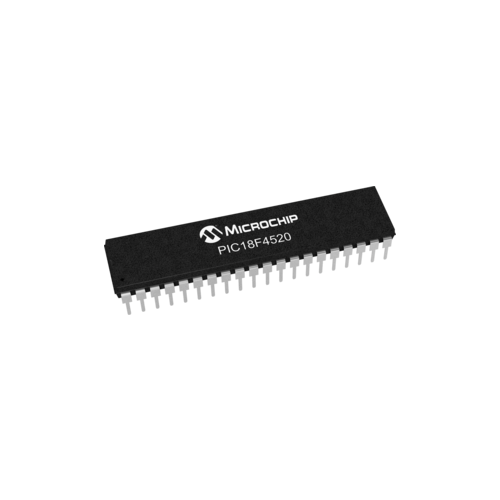

PIC18f4520 Microcontroller

PIC18f4520 is a 40 PIN Micro-controller from Microchip with 13 channel 10 bit Analog to Digital Converter.

Features of PIC18f4520 Microcontroller

CPU

• Up to 10 MIPS Performance at 3V

• C compiler optimized RISC architecture

• 8x8 Single Cycle Hardware Multiply System

• Internal oscillator support-31 kHz to 8MHz with 4xPLL

• Fail-Safe Clock Monitor- allows safe shutdown if clock fails

• Watchdog Timer with separate RC oscillator

• Wide operating Voltage range; 2.0V to 5.5V

• nanoWatt Power Managed Modes

• Run, Idle and SLEEP modes

• Idle mode currents down to 5.8uA typical

• Sleep mode currents down to 0.1uA typical

Analog Features

• 10-bit ADC, 13 channels, 100K samples per second

• Programmable Low Voltage Detection Module

• Programmable Brown-out-Reset Module

• Two Analog Comparators multiplexing

Peripherals

• Master Synchronous Serial Port supports SPI™ and I2C™ master and slave mode

• EUSART module including LIN bus support

• Four Timer modules

• Up to 5 PWM outputs

• Up to 2 Capture / Compare
