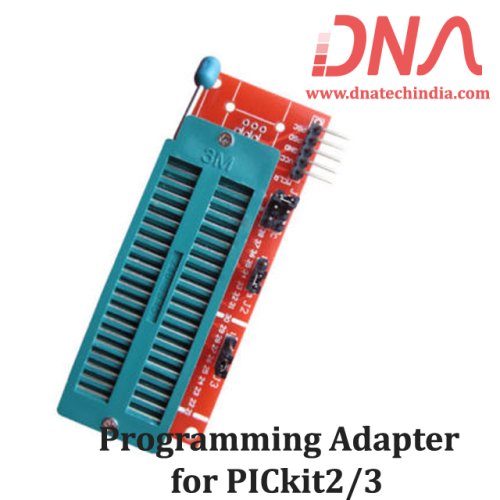

Programming Adapter for PICkit2 and PICkit3

The PICKIT 2/3 Universal Programming adapter is designed to work in conjunction with the popular PICkit 2 or PICkit3 programmer.

Instructions for use

Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A) This flag line short-circuit cap on the A position. The 8,14,18,20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position.The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for programming the programming operation. (Note: a separate program of the seat can not be programmed the chip is programmed functions)

We have Various sizes of Programmers.Check out our complete collection of Programmers

The seat supports the following programming microcontroller:

• PIC16/18XX 40PIN Series devices (except 16F59)

• PIC16/18XX 28PIN Series devices (except 16F57)

• PIC16/18XX 18PIN Series devices

• The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)

Features PICkit2/3 Universal Programming Adapter

• Prime High quality dropship good looks

• Reasonable transport forged

• for Arduino building

Package Included:

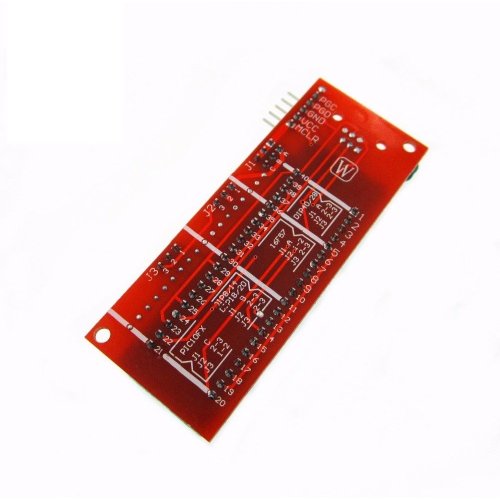

• 1 x PIC ICD2 PICKit2 PICKIT3 Universal Programming Adapter Programmer Board.
