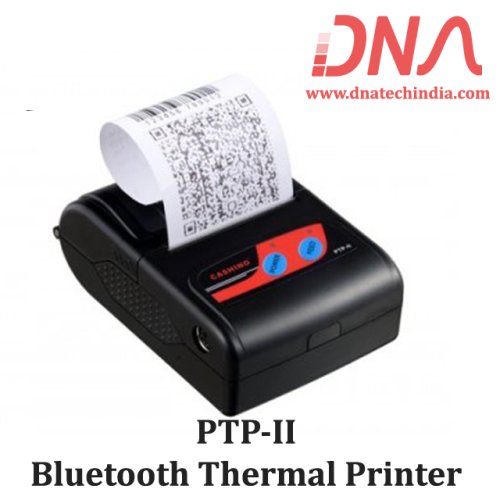

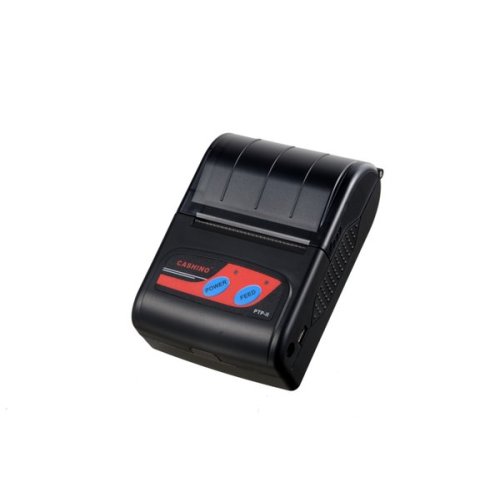

Bluetooth Thermal Printer PTP-II

This is a Portable Compact Re-chargeable Bluetooth Thermal Printer making it perfect for portable and retail applications where wireless printing is required.

Thermal Printing is a type of digital printing process in which no ink is required an image or text is printed on a special Thermal Paper by heating the paper by passing it over the Thermal print head.

This is a 2 inches (58 mm) Bluetooth Thermal Printer and is compatible with Android Mobiles as well as it can be connected to your PC/Laptop via USB Port. It has a removable & rechargeable 2000 mah lithium battery which can work for eight hours once it is fully charged.

This is a very easy to use printer and can easily work with any Bluetooth Printer app that is available on Google Play Store making it very easy to use. Also we were also able to print using Arduino as well as Raspberry Pi similarly you can also connect it to any micro-controller (via Bluetooth) that you want so you can easily integrate it with your embedded system.

We can provide the necessary technical support for integrating the Bluetooth Thermal printer with your micro-controller or Raspberry Pi.

We have Various sizes of Printers. Check out our complete collection of Printers.

Features of Bluetooth Thermal Printer

• Portable device suited for outdoor usage

• Black mark paper location sensor

• Low battery indicator(7.4V,2000mAh)

• Equipped with lithium battery for 8 hours continuous work

• Various interface communication and interface capabilities

• Bluetooth with high communication speed

• Easy paper loading

• High printing speed , up to 80mm/s.

Specifications of Bluetooth Thermal Printer

• Model : PTP-II/BT

• Dimension(W x L x H) : 79*110*45 mm

• Print method : Line thermal printer

• Paper width : 57±?0.5mm

• print width : 48mm

• Weight ( g) : 235 (not including the paper roll)

• Max diameter of paper roll : 40mm

• Dot per lie : 384 dots/line

• internal characters : ASCII CH(8x16,9x17,9x24,12×24,); GBK(16x16,24×24)

• Print speed : 50~80 mm/s

• Life cycle time : 50km(printing density under 12.5%)/100 million pulses

• Text & Graphic Support : English, figure, symbol, Chinese, graph, curve, icon pre-stored, barcode(CODE39/EAN13/EAN8 /CODABAR/CODE128/CODE93/ITF),QR code, PDF417

• Dot pitch (resolution) : 203 DPI/8 dots/mm

• interface : IRDA/RAW-IR, Bluetooth, RS232, Mini USB

• Power : 2000mAh 7.4 V rechargeable Lithium battery

• Recharge adapter : Stand by recharging / AC adapter

• Self-check : Without paper /cover open

• Black mark test : Supported

• Paper feeding : Easy paper loading

• commands : ESC/POS compatible with order sets

• Paper cut : By hands

• operate setting : Temperature -10°C~50°C ; Humidity 20%~85%

• Recharge Setting : Temperature 5°C~40°C; Humidity 20%~85%

• Storage Setting : Temperature -20°C~70°C ; Humidity 5%~95%

• Standard accessories : Long-term preservable paper, AC adapter, li-ion battery, USB cable,leather coat ?

• Optional accessories : Serial interface cable/ CD

Applications of Bluetooth Thermal Printer

• Mobile POS/Retail

• Hospitality

• Packing citation

• Deliveries

• Receipt Printing of all types

• Field reports/Installation

• Warehouse/ logistics

• Utility billing/meter readind
