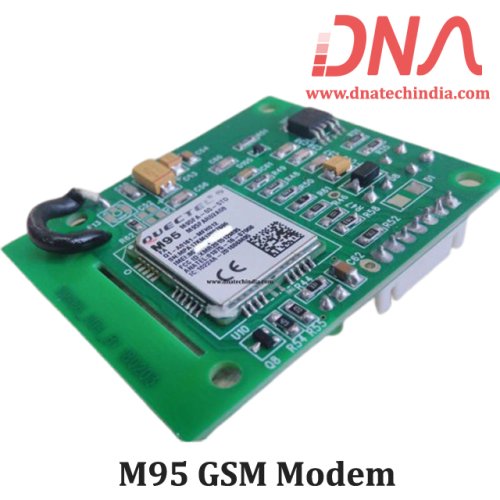

M95 GSM Modem

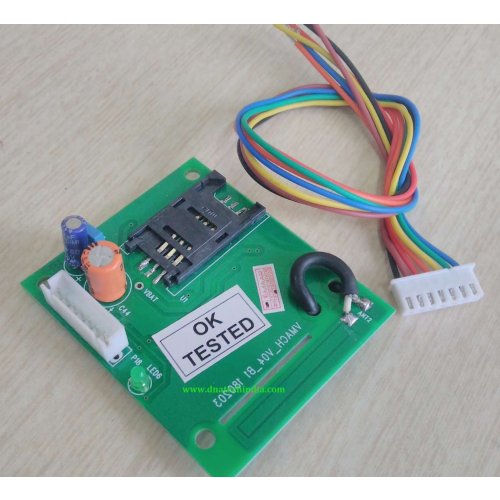

Quectel M95 TTL GSM Modem

This is a TTL GSM Modem based on the Quectel's M95 GSM/GPRS chipset this modem is perfect for testing the chipset or using it directly in your product.

We have Various sizes of GPS-GSM Module. Check out our complete collection of GPS-GSM Module.

Features of M95 GSM Modem

• UART Communication 3.3 Volt TTL level

• Supply Voltage : 5 volt to 6 volts Vdd

• Current Required : 1.5 Ampere to 2 Ampere

• Power Control via Modem ON/OFF pin

• Option to connect battery for RTC Backup

• Modem Status pin to check status of the module

• On-Board PCB etched Antenna

• Option to add external antenna

• Tested on Indian Mobile Networks

M95 GSM Module Pinouts

• Vdd : 5 Volts
• Rx Pin (3.3 volt compatible)
• Tx Pin (3.3 volt compatible)
• Module ON/OFF PIN
• Module Status Pin
• Ground
• Ground
• Vbat : Battery for RTC backup

Related Documents

• Quectel M95 Chipset Details
• M95 At Commands Manual
