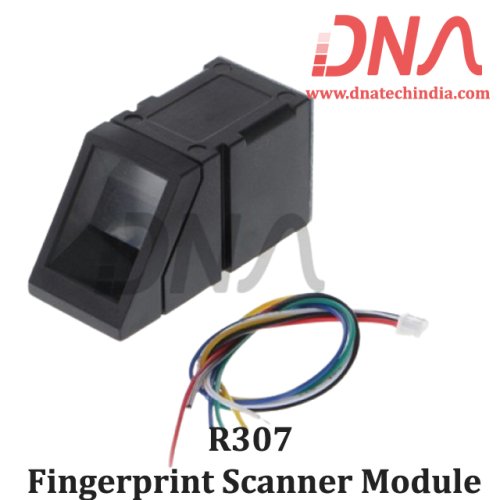

R307 Fingerprint Scanner Module
R307 fingerprint scanner module/Sensor
This is a updated compatible version for the R305 fingerprint scanner.
We have Various sizes of Modules. Check out our complete collection of Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of R307 Fingerprint Scanner
- Integrated image collecting and algorithm chip together, ALL-in-One
- Fingerprint reader can conduct secondary development, can be embedded into a variety of end products
- Users can conduct secondary development, can be embedded into a variety of end products, such as: access control, attendance, safety deposit box, car door locks
- Low power consumption, low cost, small size, excellent performance
- Professional optical technology, precise module manufacturing technics
- Good image processing capabilities, can successfully capture image up to resolution 500 dpi
- Finger detection function.
Specifications of R307 fingerprint scanner
- Supply voltage : DC 4.2 ~ 6.0V
- Supply current : Working current : 50mA (typical) Peak current : 80mA
- Fingerprint image input time : <0.3 seconds
- Matching method : Comparison method (1: 1)
- Characteristic file : 256 bytes
- Template file : 512 bytes
- Storage capacity : 1000 pieces
- Security Level : Five (from low to high: 1,2,3,4,5)
- Fake rate (FAR) : <0.001%
- Refusal rate (FRR) : <1.0%
- Search time : <1.0 seconds (1: 1000 hours, mean value)
- Host interface : UART \ USB1.1
- Communication baud rate (UART) : (9600xN) bps Where N = 1 ~ 12 (default N = 6, ie 57600bps)
- Working environment : Temperature : - 20 ℃ - +40 ℃ Relative humidity: 40% RH-85% RH (no condensation)
- Storage environment : Temperature : - 40 ℃ - +85 ℃ Relative humidity: <85% H (no condensation)
