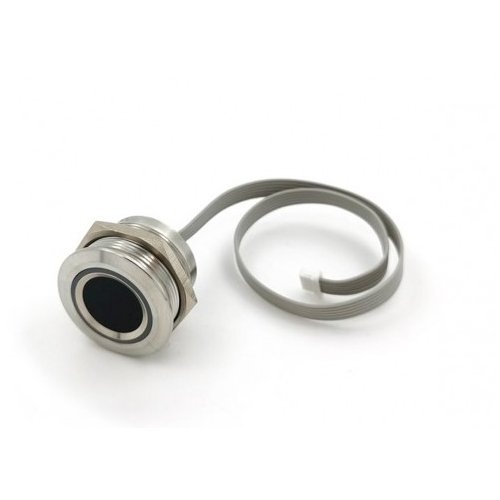

GROW-R503S Fingerprint Identification Sensor Module

Name: GROW-R503S Fingerprint Identification Sensor Module
Brand: Generic
SKU: DAG080
Price: 1500.00 INR
Availability: InStock
Rating: 4 (1 reviews)

R503S Fingerprint Identification Sensor Module

The R503S is a fingerprint identification module that combines a fingerprint scanner, image processor, and algorithm unit in one module. It can capture high-resolution fingerprint images, store them in its internal flash memory, and compare fingerprints for matching. The module supports UART communication, making it easy to interface with microcontrollers and other digital systems like Arduino, Raspberry Pi, or custom embedded platforms. The R503S is ideal for secure authentication in various systems where fingerprint identification is required, offering a fast, reliable, and easy-to-integrate solution for biometric security.

DNA solutions, Nashik has various types of Module's. Check out our complete collection of Module's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of R503S Fingerprint Identification Sensor Module

Optical Fingerprint Sensor: High-precision optical sensor for accurate fingerprint capture and recognition.

High Security & Accuracy: Built-in algorithms for fast and reliable fingerprint matching with high accuracy.

Large Storage Capacity: Can store up to 1000 fingerprint templates in internal flash memory.

Communication Interface: Supports UART communication (TTL), making it easy to integrate with various microcontrollers, including Arduino, ESP32, and others.

Fast Matching Speed: High-speed matching capability allows quick fingerprint recognition.

LED Indicator: Integrated LED lighting around the sensor to guide users during fingerprint placement and to indicate different statuses.

Specifications of R503S Fingerprint Identification Sensor Module

Interface:RS232 (TTL)

Resolution:508 DPI

Voltage :DC 3.3V

Working current(Fingerprint acquisition):20mA

Standby current(finger detection): Typical touch standby voltage: 3.3V, Average current: 2uA

Fingerprint capacity:150

Fingerprint module external size: diameter 28mm

Fingerprint module inner size: diameter 25mm(M25)

Fingerprint module height: 19mm

Sensing Array:160*160 pixel

Effective collection area: diameter 15mm

Connector: SH1.0-6pin

Scanning Speed:< 0.2 second

Verification Speed:< 0.3 second

Matching Method:1:1; 1:N

FRR (False Rejection Ratio):≤0.01%

FAR (False Acceptance Ratio):≤0.00001%

LED Color: RGB

LED Control: Yes

Antistatic capacity:15KV

Abrasive resistance intensity:1 million times

Peak power consumption:60 mA

Work environment:-20°C ---55°C

Work Humidity:0-90%

Communications baud rate (UART):(9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps)

Package Includes

1 x R503S Fingerprint Identification Sensor Module
