The REF02 series of precision voltage references provide a stable 5.0 V output with minimal change in response to variations in supply voltage, ambient temperature or load conditions.

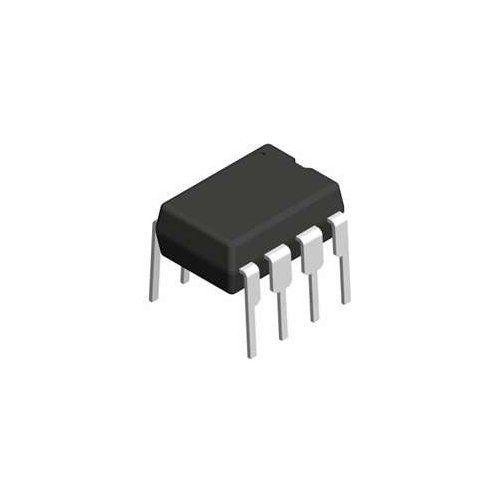

The devices are available in 8-lead SOIC, PDIP, CERDIP, and TO-99 packages, as well as 20-terminal LCC packages (883 only), furthering the usability of the devices in both standard and high stress applications.
With an external buffer and a simple resistor network, the TEMP terminal can be used for temperature sensing and approximation. A TRIM terminal is also provided on the device for fine adjustment of the output voltage. The small footprint, wide supply range, and application versatility make the REF01/REF02/REF03 series of references ideal for general-purpose and space-constrained applications.
Newer designs should use the ADR01/ADR02/ADR03/ADR06 series of references, which offer higher accuracy and temperature stability over a wider operating temperature range, while maintain-ing full pin-for-pin compatibility with the REF01/REF02/REF03 series. This data sheet applies to commercial-grade products only.
High output accuracy REF02 : 5.0 V, ±0.3% maximum
Adjustable output : ± 3% minimum
Excellent temperature stability REF02 : 8.5 ppm/°C maximum
Low noise REF02 : 15 μV p-p typical
High supply voltage range : up to 36 V maximum
Low supply current : 1.4 mA maximum
High load-driving capability : 10 mA maximum
Temperature output function
Precision data systems
High resolution converters
Industrial process control systems
Precision instruments
Military and aerospace applications
