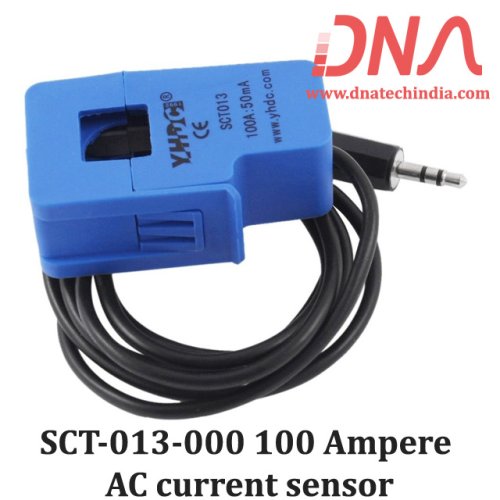

SCT-013-000 Non-Invasive current sensor to measure AC current upto 100 ampere.
SCT-013-000 is a Non-Invasive AC current sensor i.e. it is a current transformer which can be used to measure AC current upto 100 ampere.

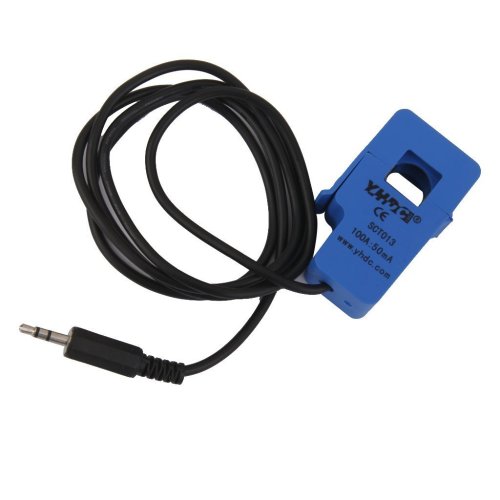

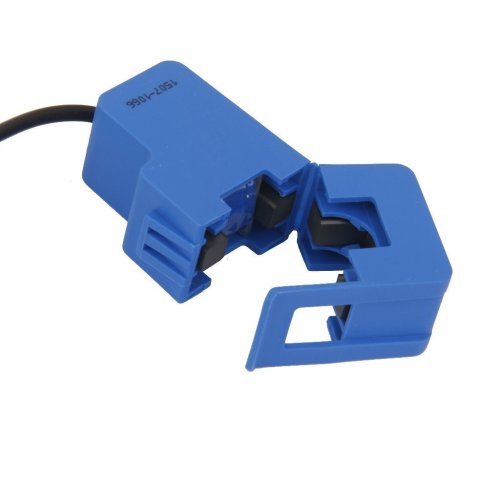

Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter). The split core type such as the SCT-013-000 CT in the picture, is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.
In the case of whole building monitoring the primary is the live or the neutral wire (not both) coming into the building itself and goes through the hole in the CT. The secondary winding comprises many turns of fine wire housed within the casing of the transformer.
Like any other transformer, a current transformer has a primary winding, a magnetic core, and a secondary winding.
DNA Solutions has a large collection of various types of Current and Voltage Sensors. Check our complete collection of Current and Voltage Sensor.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Core Material: Ferrite
External Material: Plastic
Input Current: 100A
Frequency: 50HZ-150KHZ
Opening Size: 13 x 13mm/ 0.5" x 0.5"(L*W)
Output Plug 3.5mm
Dielectric Strength 6000V AC/1min
Working Temperature -25-70°C
Cable Length : Approx. 1.18m/ 45.4"
See 4 Ratings & Reviews |
