A servomotor is a rotary actuator or linear actuator that allows for precise control of angular or linear position, velocity and acceleration.
It consists of a suitable motor coupled to a sensor for position feedback. It also requires a relatively sophisticated controller, often a dedicated module designed specifically for use with servomotors.

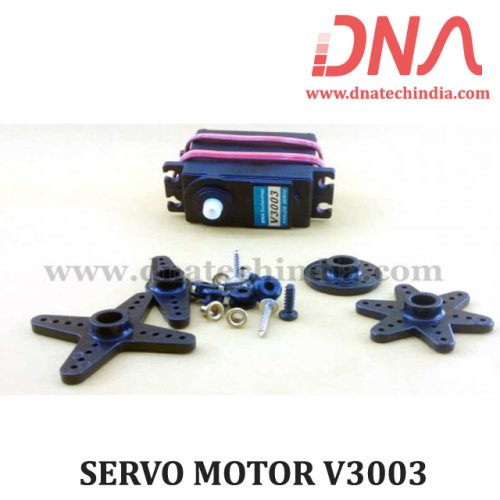

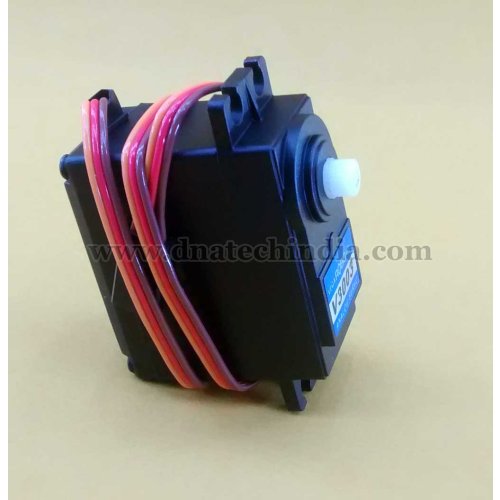

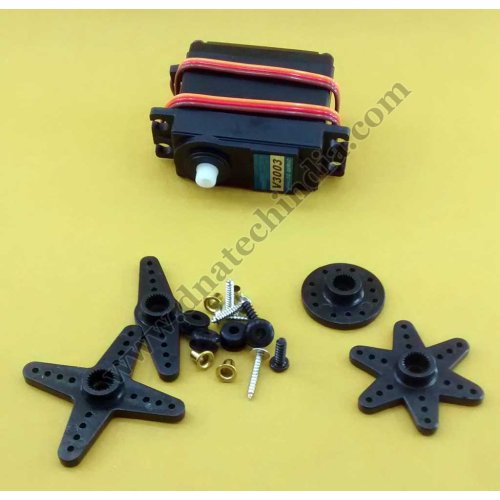

Servomotors are not a specific class of motor although the term servomotor is often used to refer to a motor suitable for use in a closed-loop control system. This is a Plastic Geared High Torque Servo Motor V3003.
We have Various sizes of Servo Motors.Check out our complete collection of Servo Motors
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Operating Voltage : 4.8- 6.0VDC
Operating Speed : 0.20sec/60degree (4.8V),
0.18sec/60degree (6.0V)
Stall Torque : 3.0kg-cm (4.8V),
3.2kg-cm (6.0V)
Temperature Range : -20°C ~60°C
Dead Band Width : 4ms
Dimension : 41.3x20.3x38.7mm
Gear : Plastic
Type : Analog
Weight : 41g
Cable in Length : 25cm
Robotics,
CNC machinery,
Automated manufacturing.
