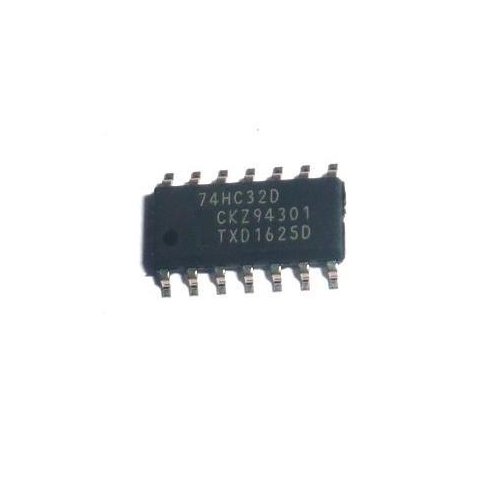

74HC32 SMD IC

74HC32 Quad 2-Input OR Gate

The 74HC32 is a 14 Pin Quad 2-Input OR Gate SMD IC. The 74HC32 provides four independent 2-input OR gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Features of 74HC32 IC

• 4 OR gates in a 14-Pin SMD Package

• Outputs Directly Interface to CMOS, NMOS and TTL

• Large Operating Voltage Range

• Wide Operating Conditions

• CMOS low power consumption

• Schmitt Trigger Action at All Inputs

Specifications Of 74HC32 IC

• Voltage Rating : 2.0 to 6.0 Volts

• Temperature Rating : 0 to 70 Deg C

• Number of : 14 Pins
