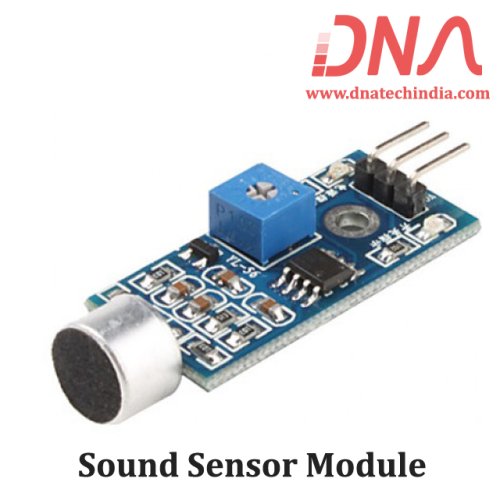

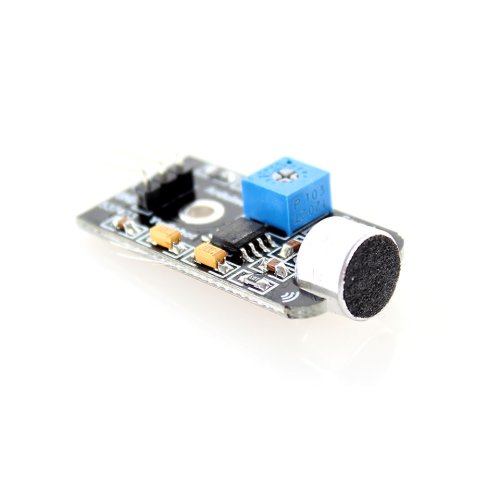

Sound Sensor Module

Digital Sound Sensor Module

This is a very easy to use Sound Detection Sensor module. The Sound Sensor module has on-board Microphone for sound detection and it has a Digital Output where the output pin is High or Low and depends on the sound intensity and the set threshold. This threshold can be set via on-board potentiometer.

This module can be easily be connected to Arduino, Raspberry Pi, and any other micro-controller as well. Lot of resources and tutorial for Sound Sensor module is easily available online.

We have Various sizes of Audio, Sound and Voice Module. Check out our complete collection of Audio, Sound and Voice Module.

Specification of Sound Sensor Module

• Operating voltage 3.3 to 5 Volts

• Outputs digital switching output (high and low level 0 and 1)

• Operating current (Vcc=5V) : 4-8 mA

• Microphone sensitivity (1Khz) : 52-48 dB

• Microphone Impedance : 2.2K Ω

• Microphone Frequency : 16-20 Khz

• Microphone S/N ratio : 54 dB
