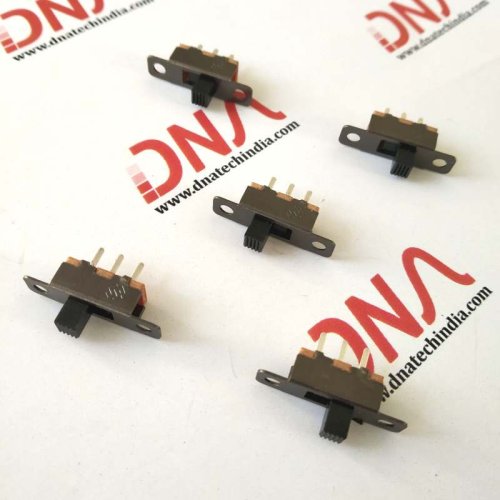

SPDT Slide Switch
3 Pin 2 Way SPDT Slide switch
This is a Single Pole Double Throw (SPDT) Slide switch with 3 terminals and a vertical handle with 2 Positions and ON-ON contact type. Widely used to control operation of many small power electronic projects, including volume and other controls for audio video, dimmer controls for lights, etc.
Specifications of SPDT Slide Switch
- Product Name : Slide Switch
- Contact Type : ON - ON, 2 Positions
- Working Power : 0.5 Ampere 30 Volt DC
- Contact Resistance : 30mΩ Max
- Insulation Resistance : 100mΩ Min at 500V DC
- Withstand Voltage : AC 500 Volt for 1 min
- Material(External) : Plastic, Metal
