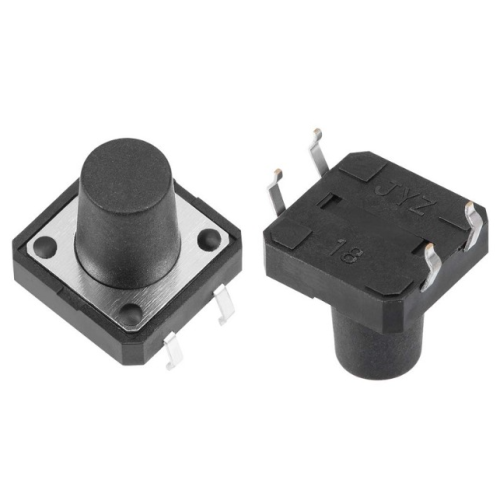

Tactile Push Button Switch 12x12x12mm – 10 Pcs

Tactile Push Button Switch 12x12x12mm, compact design, SPST configuration, up to 250 VAC/DC.

The Tactile Push Button Switch 12x12x12mm – 10 Pcs is a reliable momentary switch designed for PCB mounting. With a compact size of 12x12x12 mm, this switch offers a tactile click response, making it ideal for user input in various electronic devices. It operates with a force of approximately 3-5 N and boasts a mechanical life of over 300,000 cycles, ensuring durability in applications.

This switch is perfect for user input on consumer electronics, PCB-mounted control panels, and prototyping. It features a normally open SPST configuration and can handle operating voltages up to 250 VAC/DC. The Tactile Push Button Switch 12x12x12mm – 10 Pcs is suitable for industrial instruments and testing equipment as well, making it a versatile choice for electronic assemblies.

Explore the reliability and compact design of the Tactile Push Button Switch 12x12x12mm – 10 Pcs for your next project. Whether you are building consumer electronics or engaging in DIY electronics, this switch meets your needs while providing excellent performance.

At DNA Solutions, we provide a wide range of quality products from leading manufacturers in the "Switches & Keypad" category. Explore our selection to find the right tactile switches for your projects. Check other "Switches & Keypad" that we have in stock.

If you need specific electronic components, reach out to us. We can help you find parts like MOSFETs, SMPS, Microcontrollers, and more. If we don’t have it in stock, we can import it for you. Contact Us.

Features of Tactile Push Button Switch 12x12x12mm – 10 Pcs

• Through-hole PCB mounting with 4 legs
• Compact 12×12×12 mm plastic body
• Normally open, momentary push-to-on action
• Operating force approx. 3–5 N
• Long mechanical life (≥ 300,000 cycles)

Specification of Tactile Push Button Switch 12x12x12mm – 10 Pcs

• Dimensions: 12 mm ×12 mm ×12 mm
• Contact Configuration: SPST – Normally Open
• Operating Voltage: up to 250 VAC/DC
• Current Rating: ~50 mA
• Contact Resistance: ≤ 50 mΩ
• Insulation ≥ 100 MΩ

Applications of Tactile Push Button Switch 12x12x12mm – 10 Pcs

• User input on consumer electronics and appliances
• PCB-mounted control panels
• Prototyping and DIY electronics
• Industrial instruments and testing equipment

Package Includes

• 1 X Tactile Push Button Switch 12x12x12 mm
