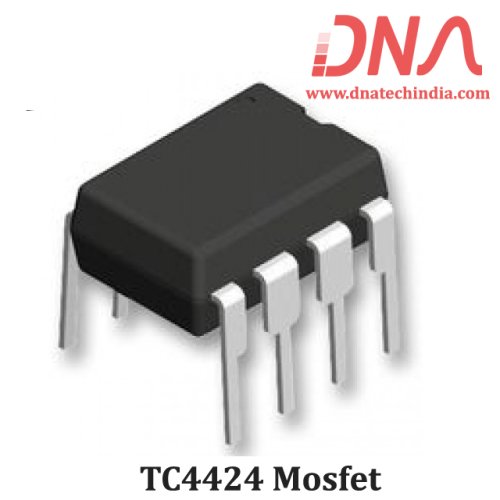

The TC4423/TC4424/TC4425 devices are a family of 3A, dual-output buffers/MOSFET drivers.
Pin compatible with the TC1426/27/28, TC4426/27/28 and TC4426A/27A/28A dual 1.5A driver families, the TC4423/24/25 family has an increased latch-up current rating of 1.5A, making them even more robust for operation in harsh electrical environments. As MOSFET drivers, the TC4423/TC4424/TC4425 can easily charge 1800 pF gate capacitance in under 35 nsec, providing low enough impedances in both the on and off states to ensure the MOSFET's intended state will not be affected, even by large transients. The TC4424 MOSFET Drivers inputs may be driven directly from either TTL or CMOS (2.4V to 18V). In addition, the 300 mV of built-in hysteresis provides noise immunity and allows the device to be driven from slowly rising or falling waveforms.
DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
High Peak Output Current : 3A
Wide Input Supply Voltage Operating Range : 4.5V to 18V
High Capacitive Load Drive Capability : 1800 pF in 25 ns
Short Delay Times : <40 ns (typ)
Matched Rise/Fall Times
Low Supply Current :
With Logic ‘ 1’ Input – 3.5 mA (Max)
With Logic ‘ 0’ Input – 350 µA (Max)
Low Output Impedance: 3.5Ohm
Latch-Up Protected : Will Withstand 1.5A Reverse Current
Logic Input Will Withstand Negative Swing Up To 5V
ESD Protected : 4 kV
Switch Mode Power Supplies
Pulse Transformer Drive
Line Drivers
See 0 Ratings & Reviews |
