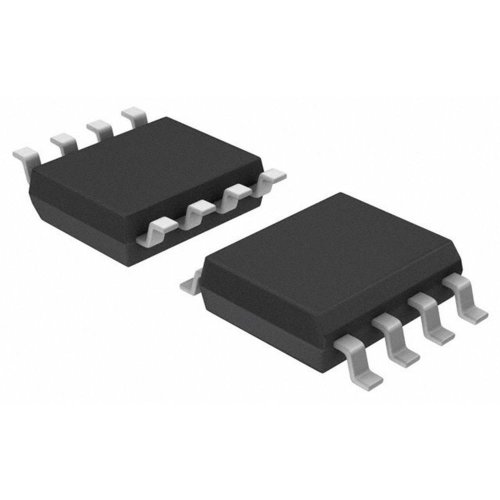

The TC7662B DC to DC Voltage Converter Module is an efficient solution for converting a wide range of input voltages from +1.5V to +15V to their negative counterparts. It operates with a high efficiency of 96% and requires only two low-cost capacitors, making it an economical choice for various applications. With an on-board oscillator frequency of 10kHz, it can be boosted to 35kHz for smaller capacitor usage, ensuring flexibility in design.
This module serves multiple purposes, including simple conversion of +5V to ±5V supplies and voltage multiplication. It is particularly useful in data acquisition systems, instrumentation, and RS232 power supplies. The TC7662B DC to DC Voltage Converter Module is a reliable replacement for the ICL7660 and other similar devices, providing a compact solution without the need for inductors.
Engineered for ease of use, the TC7662B offers a straightforward implementation with minimal external components. It is available in both DIP and SO packages, catering to different design requirements. Whether you're working on a hobby project or a professional application, this module is designed to meet your needs efficiently.
| Key | Description |
| Input Voltage Range | 1.5V to 15V |
| Output Voltage | -1.5V to -15V |
| Oscillator Frequency | 10kHz (35kHz with Boost Pin) |
| Package Type | 8-pin DIP/SO |
| Efficiency | 0.96 |
| Item | Description |
| TC7662B DC to DC Voltage Converter Module | 1 |
