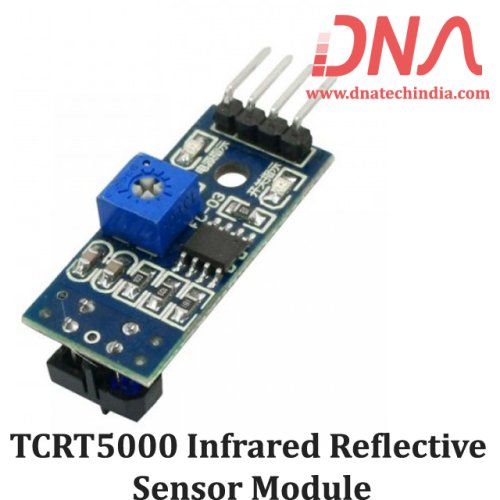

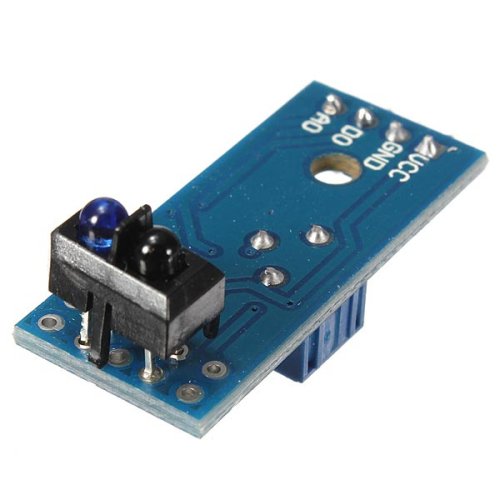

This IR reflective sensor Module used TCRT5000 IR Sensor to detect colour and distance.
This sensor module consists on an IR transmitter & an IR receiver. IR Transmitter continuously emits IR signal which is then reflected by an obstacle and is then detected by the IR receiver. TCRT5000 Infrared Reflective Sensor Module is often used in line following robots,object sorting Robot because this module can sense if a surface is white or black. The measuring distance range from 1mm to 8mm, and the central point is about 2.5mm. There is also an on-board potentiometer to adjust the sensitivity. The infrared diode will emitting the infrared continually when the module is powered ON, when the emitted infrared light has not been reflected or the strength is not big enough,the receiver diode will in the off state and output pin i.e. DO will be LOW.
We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Main chip : LM393,
Designed with reflected infrared sensor, indicator light.
Built in a potentiometer for sensitivity control.
On-board LM393 voltage comparator chip and infrared sensing probe TCRT5000L
Support 5 V / 3.5 V voltage input
On-board signal output instructions, output is high effective signal at the same time, the indicator lamp light output signal can be directly and single-chip microcomputer IO connection & middot;
Signal detection sensitivity can adjust
Reserve all the way more circuits (P3 voltage drawn)
using TCRT5000 infrared reflection sensor
test reflection distance : 1 mm to 25 mm
Operation voltage : 3.5v-5V
Operation current : >15mA
Wide voltage LM393 comparator
Output form : digital switch output (0 and 1)
Product Name : Infrared Obstacle Avoidance Sensor Module; Module Model : TCRT5000;Working Voltage : DC 3.5-5V
Output Channel : 0/1; Detect Distance : 1-25mm; Focal Distance : 2.5mm
Chipset : LM393;PCB Size : 32 x 14mm/1.3" x 0.55" (L*W)
Total Size : 38 x 14 x 18mm/1.5" x 0.55" x 0.7"(L*W*H);Material : Electric Part
Net Weight : 3g;Package Content : 1 x Infrared Obstacle Avoidance Sensor Module
