TIP122 Darlington Transistors

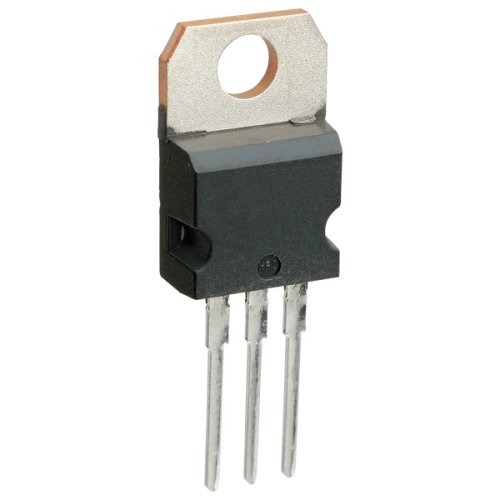

TIP122 is a Darlington NPN Transistors. It is available in TO220AB Plastic case in package with collector current 5 Ampere.

Features of TIP122 Transistor

• Collector-Emitter-voltage B open V_CE0: 100 V

• Collector-Base-voltage E open V_CB0: 100 V

• Emitter-Base-voltage C open V_EB0: 5 V

• Collector current I_C: 5 A

• Peak Collector current I_CM: 8 A

• Base current (dc) I_B: 120 mA

• Junction temperature T_j : - 65 + 150°C

• Storage temperature T_S: - 65 + 150°C

• Recommended complementary PNP transistors TIP125, TIP126, TIP127
