TIP127 Darlington Transistor

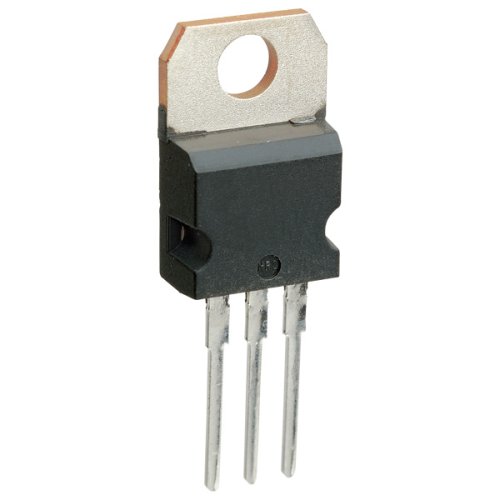

TIP127 is a Darlington PNP Transistor. It comes in TO220AB Plastic case in package with collector current 5 Ampere.

Features of TIP127 Transistor

• Collector-Emitter-voltage B open VCE0 : 100 V

• Collector-Base-voltage E open VCB0 : 100 V

• Emitter-Base-voltage C open VEB0 : 50 V

• Collector current IC : 5 A

• Peak Collector current ICM : 8 A

• Base current (dc) IB : 120 mA

• Junction temperature Tj : - 65 + 150°C

• Storage temperature TS : - 65 + 150°C

• Recommended complementary NPN transistors TIP120, TIP121, TIP122
