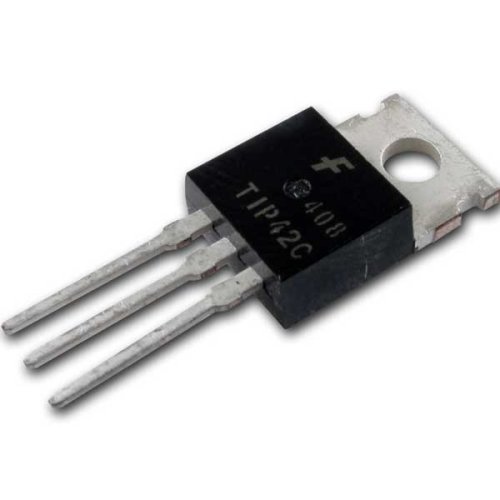

TIP42 PNP Transistor

TIP42 Series Transistors are used in Medium Power Linear Switching Applications.

Features of TIP42 PNP Transistor

• V_CBO Collector-Base Voltage : TIP42 - 40V

• V_CEC Collector-Emitter Voltage : TIP42 - 40V

• V_EBO Emitter-Base Voltage - 5 V

• I_C Collector Current (DC) - 6 A

• I_CP Collector Current (Pulse) -10 A

• I_B Base Current -2 A

• P_C Collector Dissipation (TC=25°C) 65 W

• P_C Collector Dissipation (Ta=25°C) 2 W

• T_J Junction Temperature 150 °C

• T_STG Storage Temperature - 65 ~ 150 °C
