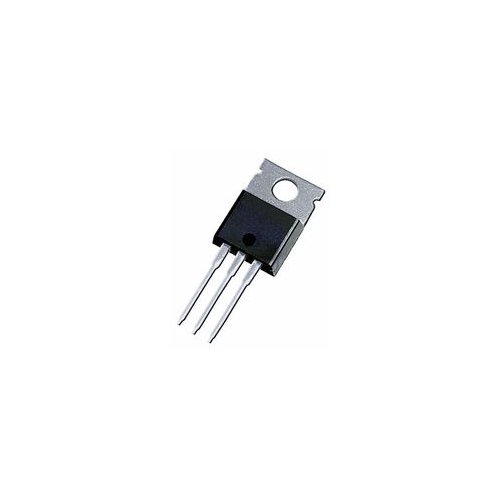

TIP31C NPN Power Transistor

The TIP31C is a base island technology NPN power transistor in TO-220 plastic package with better performances than the industry standard TIP31C that make this device suitable for audio, power linear and switching applications. The PNP type is TIP32C.

General features of TIP31C

• New enhanced series

• High switching speed

• h_FE improved linearity

• h_FE Grouping

• V_CBO Collector-base voltage (I_E = 0) 100 V

• V_CEO Collector-emitter voltage (I_B = 0) 100 V

• V_EBO Emitter-base voltage (I_C = 0) 5 V

• I_C Collector current 3 A

• I_CM Collector peak current 5 A

• I_B Base current 1 A

• P_TOT Total dissipation at T_case = 25°C 40W

  Total dissipation at T_amb = 25°C 2W

• T_stg Storage temperature -65 to 150 °C

• T_J Max. operating junction temperature 150 °C

Application of TIP31C

• Linear and switching industrial application
