TL084 JFET OPAMP

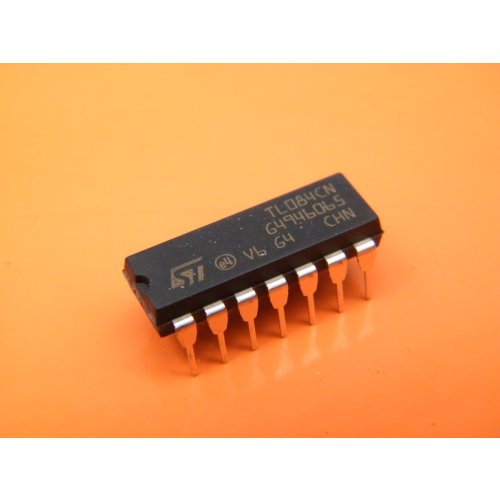

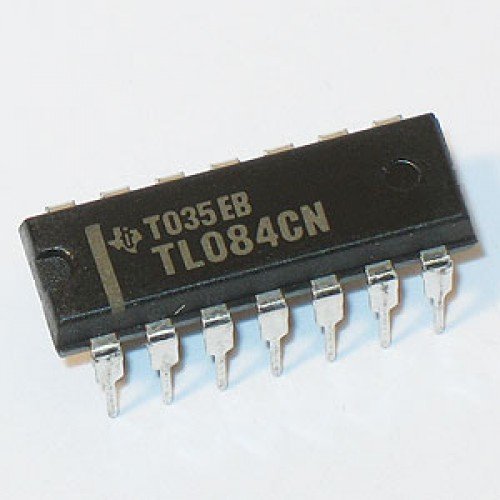

TL084 JFET-Input Operational Amplifier

The TL084 JFET-input operational amplifier is designed to offer a wider selection than any previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low input bias and offset currents, and low offset-voltage temperature coefficient. Offset adjustment and external compensation options are available within TL084.

Features of TL084 OPAMP

• 4MHz Bandwidth, 16V/us Slew Rate

• 3mV Input Offset Voltage, 200V/mV Gain,

• 86dB CMRR

• 6 to 36V Supply Voltage, 18V Supply voltage

• 0°C to +70°C, 14-DIP Case

• Wide Common-mode and Differential Voltage Range

• Low Input Bias and Offset Current

• Output Short-circuit Protection

• High Input Impedance JFET Input Stage

• Internal Frequency Compensation

• Latch-up Free Operation

• High Slew Rate
