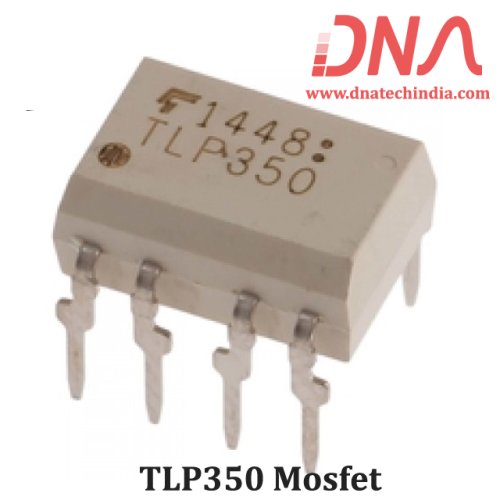

The TOSHIBA TLP350 consists of a GaAℓAs light-emitting diode and an integrated photodetector.
This unit is an 8-lead DIP package. The TLP350 opto-coupler is suitable for gate driving IGBTs or power MOSFETs.
DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Peak output current : IO = ±2.5A (max)
Guaranteed performance over temperature : −40 to 100°C
Supply current : ICC = 2 mA (max)
Power supply voltage : VCC = 15 to 30 V
Threshold input current : IFLH = 5 mA (max)
Switching time (tpLH/tpHL) : 500 ns (max)
Common mode transient immunity : 15 kV/μs
Isolation voltage : 3750 Vrms
Operating frequency 50 kHz
Storage temperature range Tstg -55 to 125 °C
Lead soldering temperature (1 0 s) Tsol 260 °C
