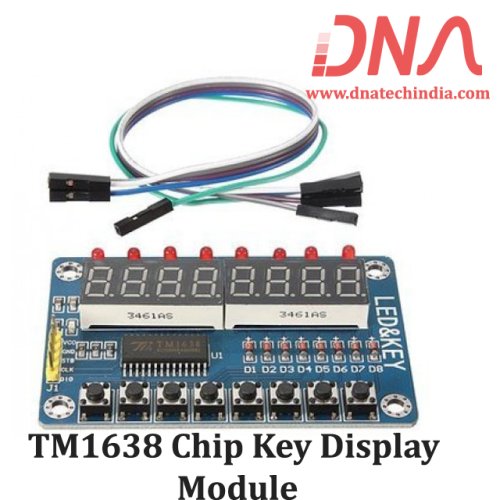

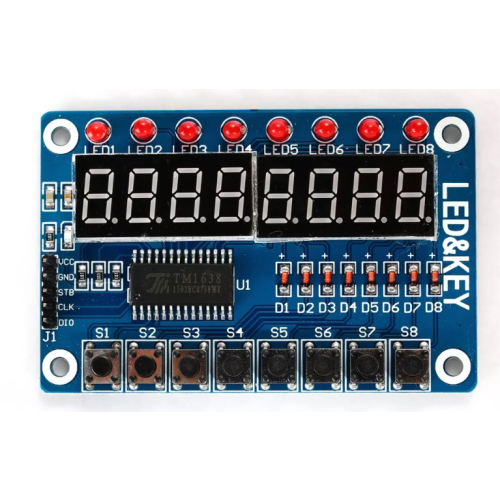

TM1638 key display module has 8 digit seven segment display, 8 keys & 8 LEDs. Using TM1638 Chip control everything using just 3 microcontroller pins.
The advantage is only three IO ports will be occupied when it drives. Moreover the controller is not busy all the time as no scanning for seven segment display or even key scanning is not involved. It only need to read the relevant register to send display data or test button so it save MCU resources effectively.
We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Weight : 28g
Material : Glass fiber reinforced plastic PBT shell PA blades
How to connect : VCC GND 5V power supply STB CLK DIO SCM IO port.
Package included : 1 x LED display module 5 x Dupont line connectors
