The operating frequency of 132 kHz is jittered to significantly reduce both the quasi-peak and average EMI, minimizing filtering cost.
TinySwitch-II maintains the simplicity of the TinySwitch topology, while providing a number of new enhancements to further reduce system cost and component count, and to practically eliminate audible noise. Like Tiny Switch, a 700 V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry are integrated onto a monolithic device. The start-up and operating power are derived directly from the voltage on the DRAIN pin, eliminating the need for a bias winding and associated circuitry. In addition, the TinySwitch-II devices incorporate auto-restart, line under voltage sense, and frequency jittering.

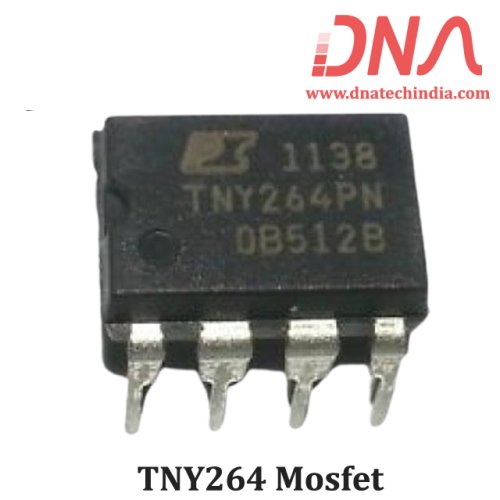

An innovative design minimizes audio frequency components in the simple ON/OFF control scheme to practically eliminate audible noise with standard taped/varnished transformer construction. TNY264 fully integrated auto-restart circuit safely limits output power during fault conditions such as output short circuit or open loop, reducing component count and secondary feedback circuitry cost. An optional line sense resistor externally programs a line under-voltage threshold, which eliminates power down glitches caused by the slow discharge of input storage capacitors present in applications such as standby supplies.
DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Fully integrated auto-restart for short circuit and open loop fault protection–saves external component costs
Built-in circuitry practically eliminates audible noise with ordinary varnished transformer
Programmable line under-voltage detect feature prevents power on/off glitches–saves external components
Frequency jittering dramatically reduces EMI (~10 dB) –minimizes EMI filter component costs
132 kHz operation reduces transformer size–allows use of EF12.6 or EE13 cores for low cost and small size
Very tight tolerances and negligible temperature variation on key parameters eases design and lowers cost
Lowest component count switcher solution
