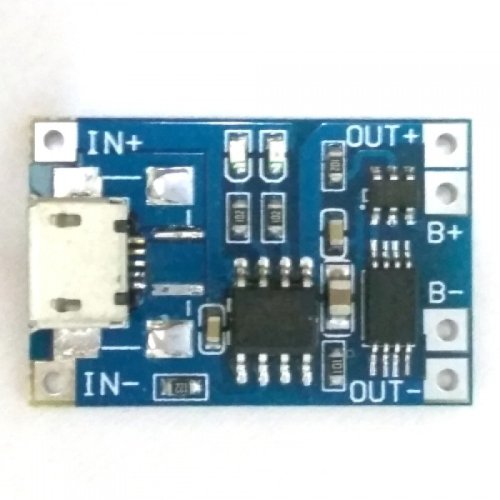

TP4056 Lithium Battery Charging Module
TP4056 lithium battery charge and discharge protection module is equipped with TP4056 chip, a maximum charge current up to 1.2A, and this module is equipped with a charge-discharge protection device for the voltage of 3.6V, 3.7V such as 18650, polymer etc., single or multiple parallel can also be used.
Onboard TP4056 lithium battery charging management chip
Onboard micro USB,can connect with most smart phone charger directly as an input to the lithium battery
Reserved IN+and IN-input port, convenient to user's DIY
On-board charging status indicator
Support the charge and discharge current protection
The chip with constant current, full automatic stop
Support simultaneous charging and discharging
Input voltage : DC 5V
Charging cut-off voltage : DC 4.2V (+-1%)
Charging method : Linear Charge
Operating temperature :-20-85 degree celsius
The hardware size : 18.7mmx26.3mm
The hole diameter size : 1.54mm
